Product Information and estimated shipping date will be updated as information becomes available from Align.
Standard Equipment TN70 Kit Set x 1 690 Carbon Fiber Blades x 1 105 Carbon Fiber Tail Blades x 1 ALIGN 105 High Performance Pipe x 1 O.S. MAX-105HZ Engine x 1 DS830M High Voltage Brushless Servo x 3 DS835M High Voltage Brushless Servo x 1 DS530 Digital Servo x 1 B6M 2 In 1 Voltage Regulator Combo x 1 MICROBEAST² Flybarless System x 1 Governor Sensor x 1 |
Equipment Required for Assembly Transmitter (6-channel or more, helicopter system) Receiver (6-channel or more) or Remote Receiver Engine Starter x 1 Fuel Pump x 1 Engine Fuel x 1 Digital Pitch Gauge Multi-Function Tester 2S1P 7.4V Li-Po 1900~2600mAh Battery x 1 Misc. Building Equipment *All Items Are Subject To Change By Align |
Standard Equipment | |
Kit | TN70 Top Combo |
Model | RH70N31X |
Main Blades | Align 690 |
Tail Blades | Align 105 |
Electronics Included | |

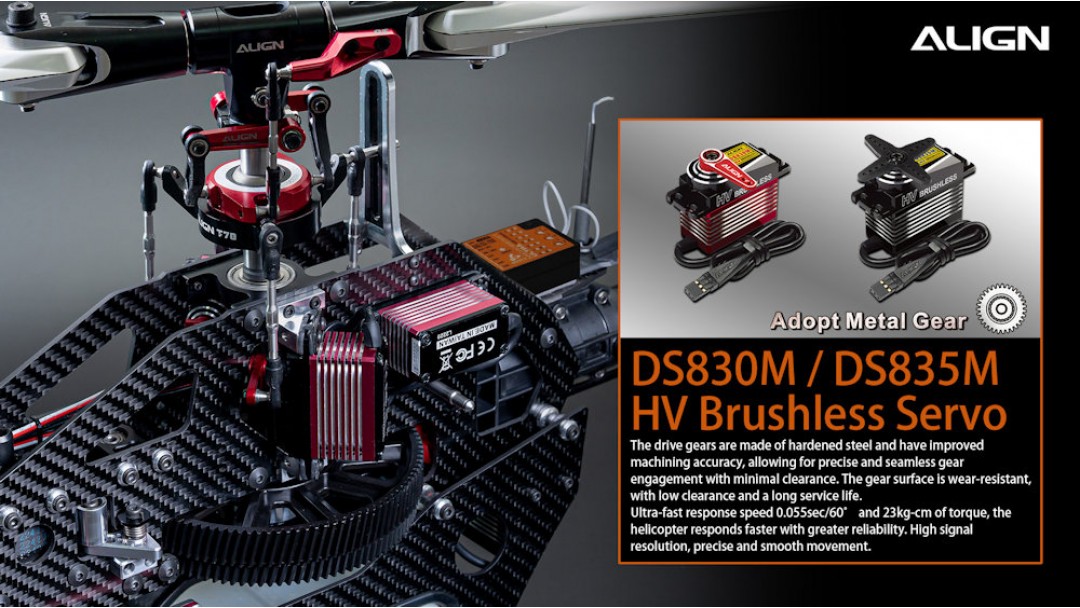

Cyclic Servo | DS830M HV Brushless Servo x 3 |
Tail Servo | DS835M HV Brushless Servo |
Servo Gears | Metal |
Servo Case | Metal |
Flybarless System | Microbeast |
Flybarless Programming | Lights & Dials, or Studiox APP using Optional BXA76404 Bluetooth Device |
Stabilization Level Mode | Optional Upgrade |
Rescue Mode | Optional Upgrade |
Receiver Supported | DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver |
Nitro Equipment | |
Engine | OS Max-105HZ |
Muffler | Align 105 High Performance Pipe |
Glow Starter | Yes |
Fuel Tank | 650cc |
Voltage Regulator | B6M 2 in 1 Voltage Regulator |
Throttle Servo | DS530 Digital Servo |
Throttle Servo Gear | Metal |
Throttle Servo Case | Metal - Plastic |
Governor Sensor | Beastx Governor Sensor |
Specification | |
Assembly Required | Yes |
Length | 1355mm |
Height | 397mm |
Width | 202mm |
Main Blade Length | 680 - 700mm |
Main Rotor Diameter | 1543mm |
Tail Blade Length | 105 - 115mm |
Tail Rotor Diameter | 279mm |

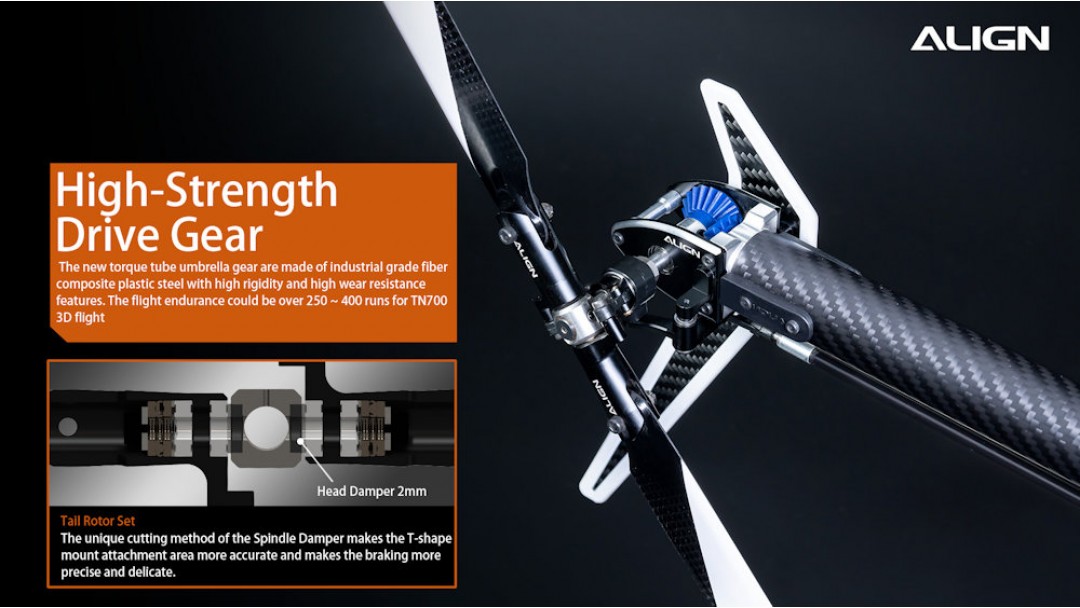

Drive Gear Ratio | 7.43 : 1 : 4.23 |
Weight (Without Battery) | 4110g |
