Product Information and estimated shipping date will be updated as information becomes available from Align.

Standard Equipment

TN70 Kit Set x 1

690 Carbon Fiber Blades x 1

105 Carbon Fiber Tail Blades x 1

ALIGN 105 High Performance Pipe x 1

DS830M High Voltage Brushless Servo x 3

DS835M High Voltage Brushless Servo x 1

DS530 Digital Servo x 1

B6M 2 In 1 Voltage Regulator Combo x 1

Governor Sensor x 1

Equipment Required for Assembly

Transmitter (6-channel or more, helicopter system)

Receiver (6-channel or more) or Remote Receiver

OS-105 or Other Similar Nitro Motor x 1

Flybarless System Recommend MICROBEAST² x 1

Engine Starter x 1

Fuel Pump x 1

Engine Fuel x 1

Digital Pitch Gauge

Multi-Function Tester

2S1P 7.4V Li-Po 1900~2600mAh Battery x 1

Misc. Building Equipment

*All Items Are Subject To Change By Align

Standard Equipment
Kit TN70 Top Combo
Model RH70N41XT
Main Blades Align 690
Tail Blades Align 105
Electronics Included
Cyclic Servo DS830M HV Brushless Servo x 3
Tail Servo DS835M HV Brushless Servo
Servo Gears Metal
Servo Case Metal
Flybarless System Recommend Microbeast (Sold Separately)
Flybarless Programming Lights & Dials, or Studiox APP using Optional BXA76404 Bluetooth Device
Stabilization Level Mode Optional Upgrade
Rescue Mode Optional Upgrade
Receiver Supported DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver
Nitro Equipment
Engine OS Max-105HZ
Muffler Align 105 High Performance Pipe
Glow Starter Yes
Fuel Tank 650cc
Voltage Regulator B6M 2 in 1 Voltage Regulator
Throttle Servo DS530 Digital Servo
Throttle Servo Gear Metal
Throttle Servo Case Metal - Plastic
Governor Sensor Beastx Governor Sensor
Specification
Assembly Required Yes
Length 1355mm
Height 397mm
Width 202mm
Main Blade Length 680 - 700mm
Main Rotor Diameter 1543mm
Tail Blade Length 105 - 115mm
Tail Rotor Diameter 279mm
Drive Gear Ratio 7.43 : 1 : 4.23
Weight (Without Battery) 4110g

Write a review

Please login or register to review

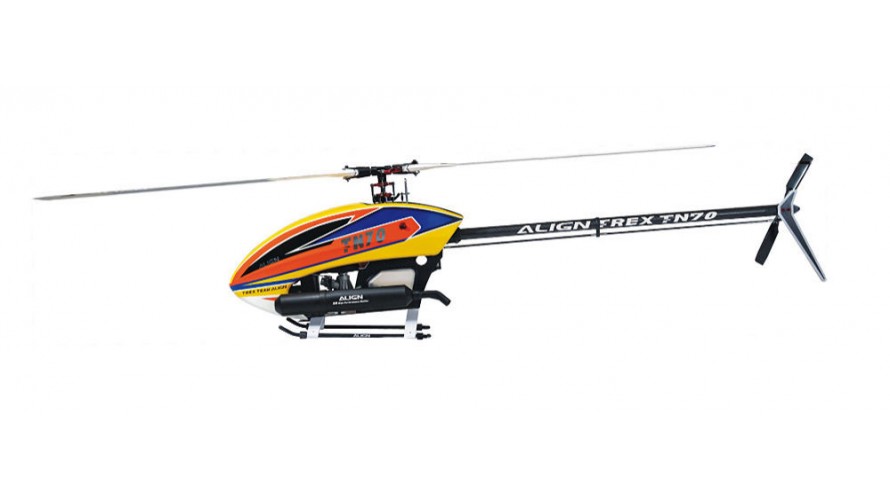

TN70 Super Combo

  • Brand ALIGN
  • Product Code: 01-RH70N41XW
  • Availability: In Stock
  • $1,539.99
