TB70 Super Combo Kit
TB70 Manual Download
|

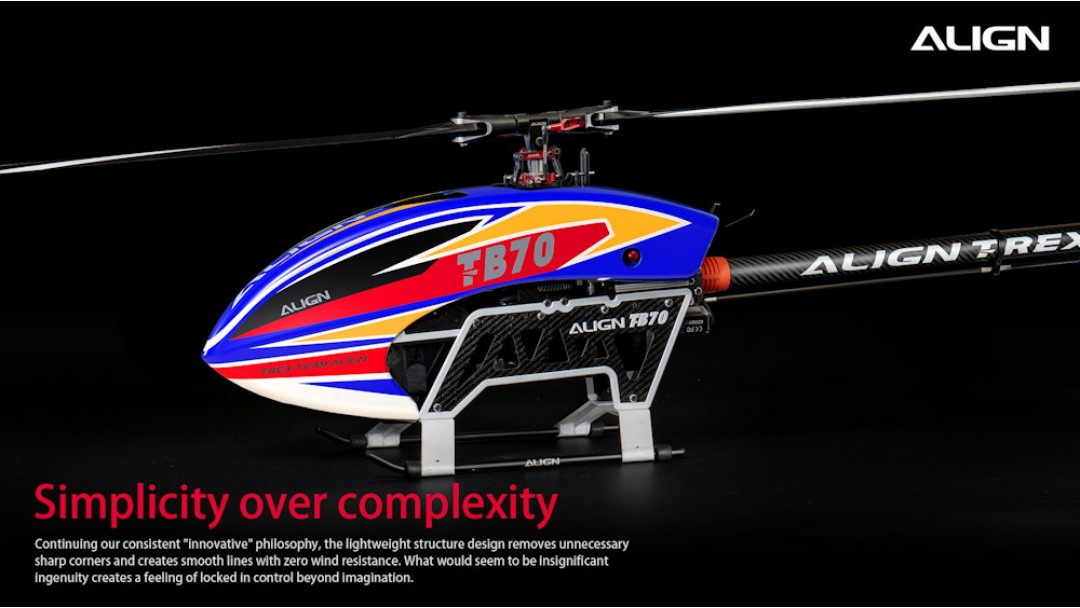

New Features Efficient Belt- Drive Upgrade Design Integrate the composite material side plates engineered by exclusive embedding technology 800MX Brushless Motor 570KV/4530 with superior power supply Brand new designed streamline Canopy * NEW Upgrade Canopy Mounting Bolt * NEW |
Package Includes TB70 Kit 22T Motor Belt Pulley 700 Carbon Fiber Blades 105mm 3K Carbon Fiber Tail Blades 800MX Brushless Motor(570KV/4530) |
Items Required for Use and Assembly
|
Transmitter (6-channel or more, helicopter system) Receiver (6-channel or more) / Satellite RCC-6CX Intelligent Balance Charger |
22.2V 6S 4000~5800mAh Li-Po Battery x 2 Digital Pitch Gauge |
| Standard Equipment | |
| Kit | TB70 V2 Super Combo (Orange) |
| Model | RH70E59Xw |
| Main Blades | ALIGN 700mm |
| Tail Blades | ALIGN 105mm |
| Electronics Included | |
| ESC | RCM-BL130A 130A ESC |
| ESC Programing | Align ASBOX Multifunction Programmer HES00001 (Sold Separately) |
| Motor | 800MX Brushless Motor(570KV/4530) |
| Cyclic Servo | DS830M High Voltage Brushless Servo x 3 |
| Tail Servo | DS835M High Voltage Brushless Servo x 1 |
| Servo Gears | Metal |
| Servo Case | Metal |
| Flybarless System | icrobeast PLUS Flybarless |
| Flybarless Programming | Lights, Dials, or Studiox APP using Optional USB or Bluetooth Device |
| Stabilization Level Mode | Optional Update |
| Rescue Mode | Optional Update |
| Receiver Supported | DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, SRXL2, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver |
| Specification | |
| Assembly Required | Yes |
| Length | 1356mm - 53.39in |
| Height | 358mm - 14.09in |
| Width | 187mm - 7.36in |
| Main Blade Length | 650 - 730mm |
| Main Rotor Diameter | 1542mm - 60.71in |
| Tail Blade Length | 105 - 115mm |
| Tail Rotor Diameter | 279mm - 10.98in |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 22T |

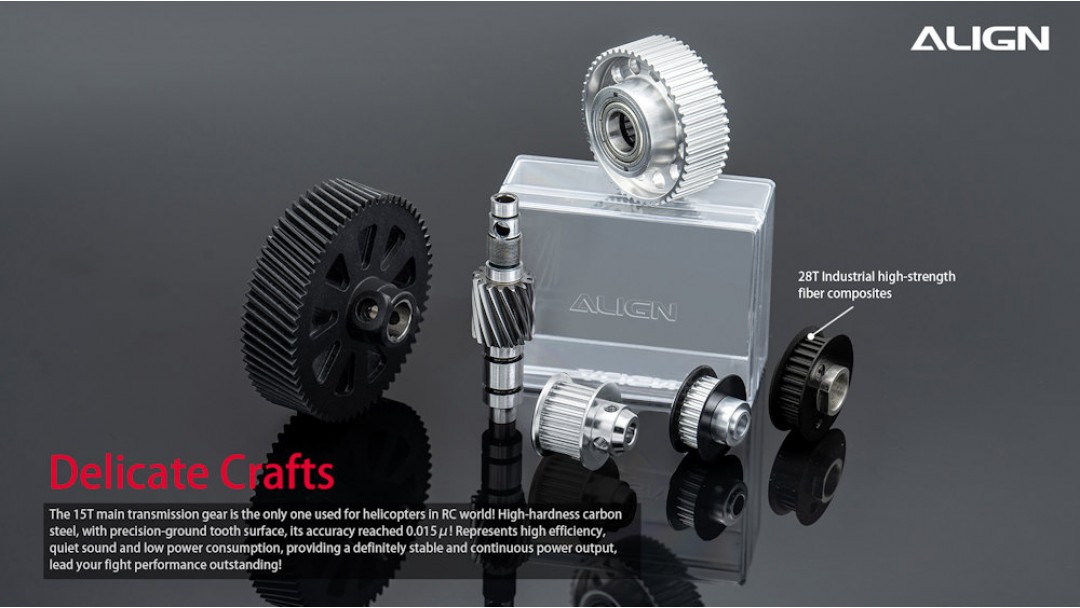

| Main Drive Gear | 62T |
| Autorotation Driver Gear | 27T |
| Main Drive Pulley | 50T |
| Tail Drive Gear | 23T |
| Tail Drive System | Belt |
| Drive Gear Ratio | 9.38:1:4.83 |
| Max RPM (approx.) | 2400RPM |
| Weight (Without Battery) | 2.3kg - 5.07lbs |

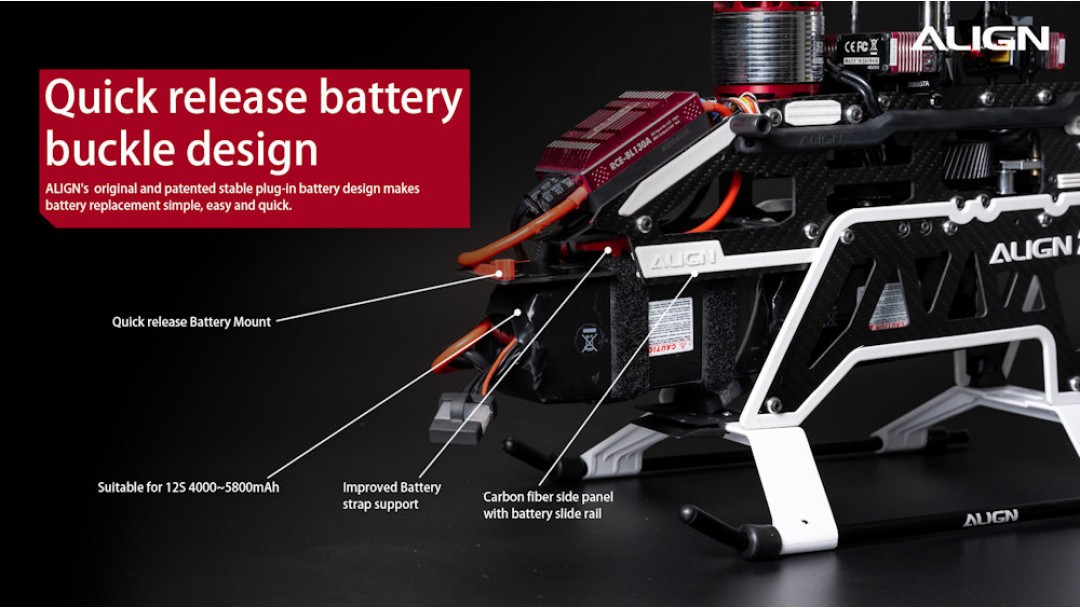

| Battery Size | 22.2V 6S 4000~5800mAh Li-Po Battery x 2 |

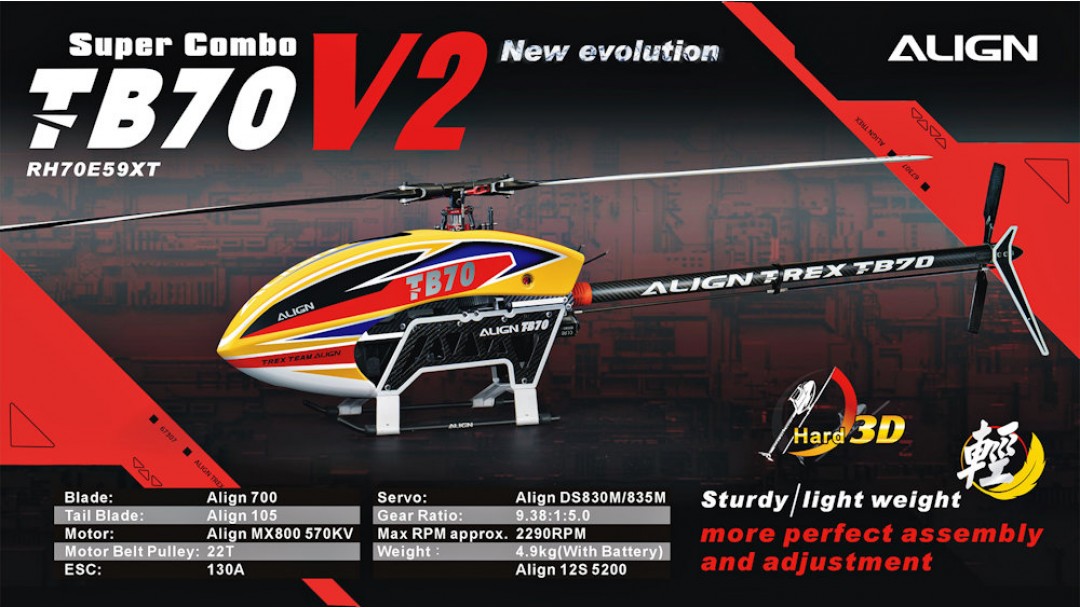

TB70 V2 Super Combo - Orange
- Brand ALIGN
- Product Code: 01-RH70E59XW
- Availability: Out Of Stock
- $1,599.99
-
$1,359.99
