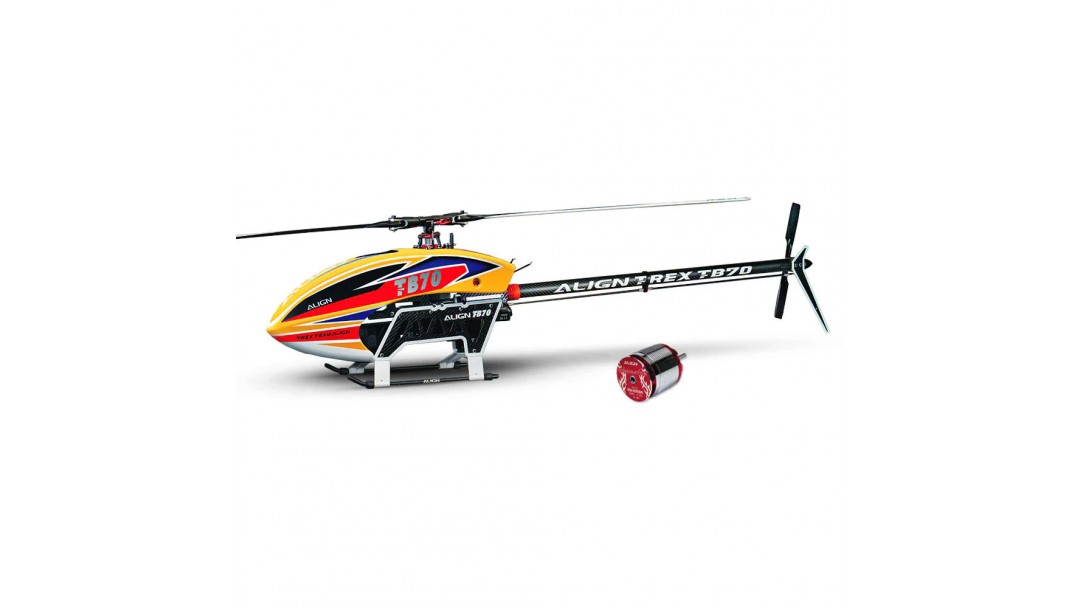

TB70 V2 Kit (Motor ONLY)
TB70 Manual Download
|

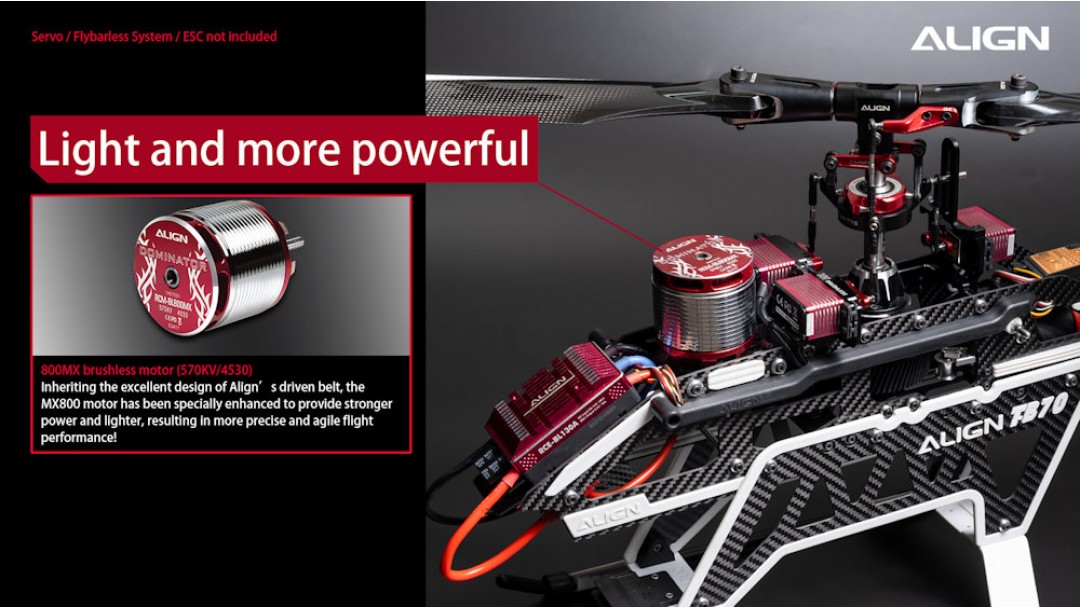

New Features Efficient Belt- Drive Upgrade Design Integrate the composite material side plates engineered by exclusive embedding technology 800MX Brushless Motor 570KV/4530 with superior power supply Brand new designed streamline Canopy * NEW Upgrade Canopy Mounting Bolt * NEW |
Package Includes TB70 Kit 22T Motor Belt Pulley 700 Carbon Fiber Blades 105mm 3K Carbon Fiber Tail Blades 800MX Brushless Motor(570KV/4530) |
Items Required for Use and Assembly
|
Transmitter(6-channel or more, helicopter system) Receiver(6-channel or more) RCC-6CX Intelligent Balance Charger 22.2V 6S 4000~5800mAh Li-Po Battery x 2 Digital Pitch Gauge |
Flybarless System (Recommend MicroBeast Beastx) CCPM Brushless Servo x 3 Rudder Brushless Servo x 1 Brushless ESC x 1 |
| Standard Equipment | |
| Kit | TB70 V2 Kit - Orange |
| Model | RH70E64XW |
| Main Blades | ALIGN 700mm |
| Tail Blades | ALIGN 105mm |
| Electronics Included | |
| Motor | ALIGN 800MX Brushless Motor (570KV/4530) |
| Specification | |
| Assembly Required | Yes |
| Length | 1356mm - 53.39in |
| Height | 358mm - 14.09in |
| Width | 187mm - 7.36in |
| Main Blade Length | 650 - 730mm |
| Main Rotor Diameter | 1542mm - 60.71in |
| Tail Blade Length | 105 - 115mm |
| Tail Rotor Diameter | 279mm - 10.98in |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 22T |
| Main Drive Gear | 62T |
| Autorotation Driver Gear | 27T |
| Main Drive Pulley | 50T |
| Tail Drive Gear | 23T |

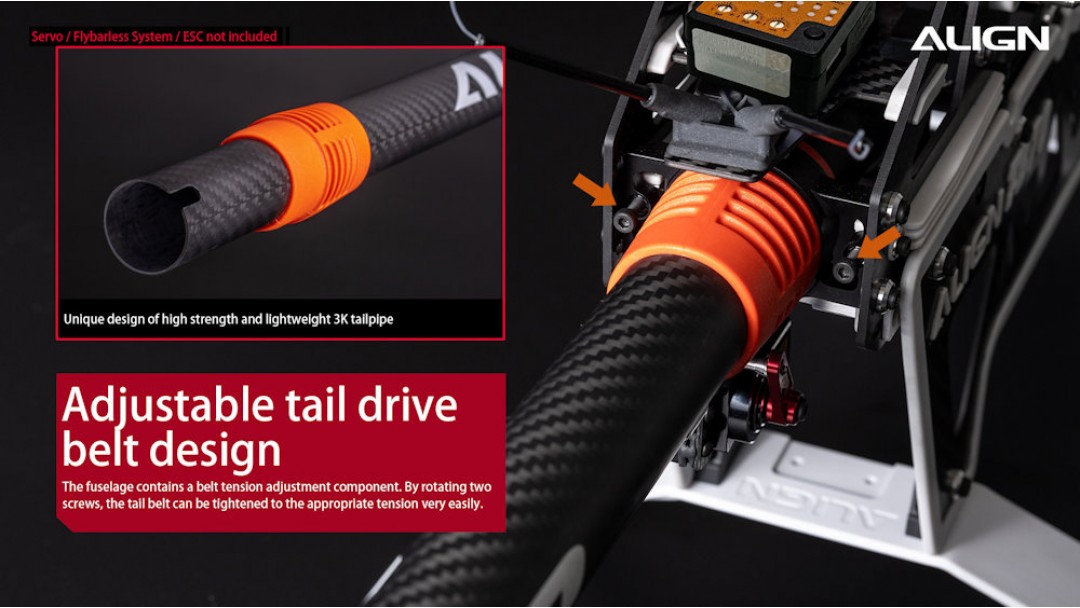

| Tail Drive System | Belt |
| Drive Gear Ratio | 9.38:1:4.83 |
| Max RPM (approx.) | 2400RPM |
| Weight (Without Battery) | 2.3kg - 5.07lbs |
| Battery Size | 22.2V 6S 4000~5800mAh Li-Po Battery x 2 |
