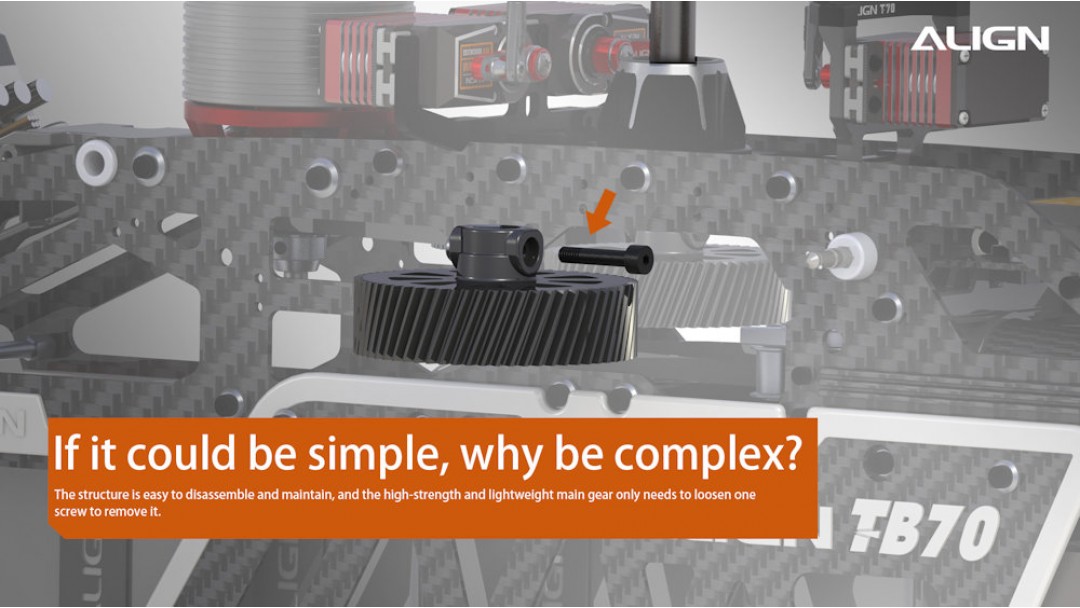

Includes: Updated Pinon, Main Drive Gear, 15mm Belt

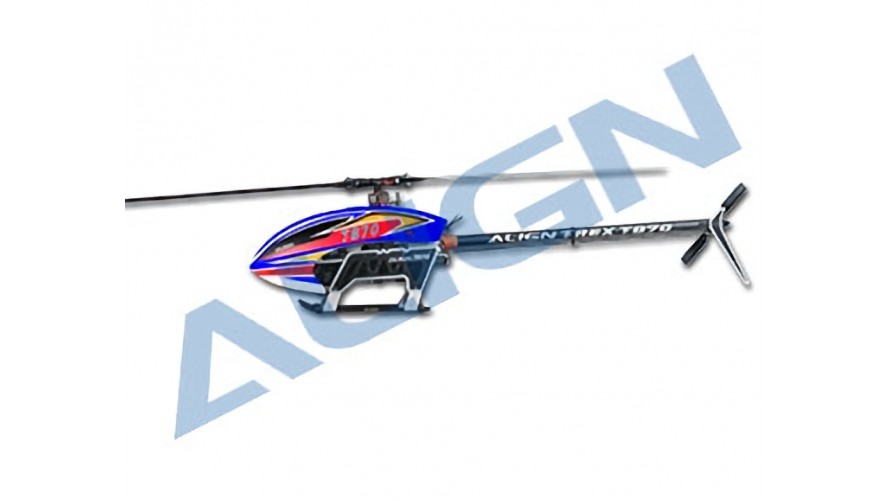

TB70 Top Combo
All-New Align TB70 is specially designed for extreme 3D flight addicts.
Efficient Belt-Drive Design
Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology
Lighter, Quieter, and Stronger compared to Prior Align T-REX 700 Models
New Streamline Designed Canopy
Upgraded Canopy Mounting System
| Standard Equipment | |
| Kit | TB70 Top Combo Blue / Red |
| Model | RH70E53XW |
| Main Blades | ALIGN 700mm |
| Tail Blades | ALIGN 105mm |
| Electronics Included | |
| ESC | RCM-BL200A Hobbywing Platinum HV 200A V4 ESC |
| ESC Programing | ALIGN ASBOX Multifunction Programmer HES00001 (Sold Separately) |
| Motor | ALIGN 850MX Brushless Motor (540KV/4535) |

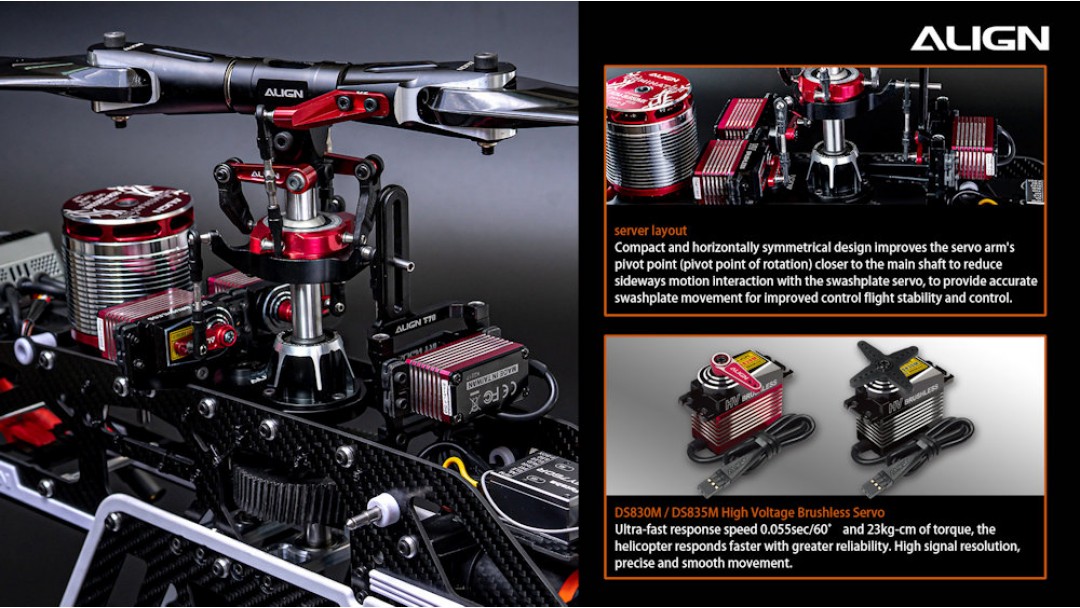

| Cyclic Servo | ALIGN DS820M HV Digital Servo x 3 |
| Tail Servo | ALIGN DS825M HV Digital Servo |
| Servo Gears | Metal |
| Servo Case | Metal |
| Flybarless System | (Sold Separately) Recommend Beastx |
| Specification | |
| Assembly Required | Yes |
| Length | 1356mm - 53.39in |
| Height | 358mm - 14.09in |
| Width | 187mm - 7.36in |
| Main Blade Length | 650 - 730mm |
| Main Rotor Diameter | 1542mm - 60.71in |
| Tail Blade Length | 105 - 115mm |
| Tail Rotor Diameter | 279mm - 10.98in |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 22T - Belt 15mm |
| Tail Drive System | Belt |
| Drive Gear Ratio | 9.38 : 1 : 4.83 |
| Max RPM (approx.) | 2400 RPM |
| Weight Flying (with battery) | Approx 5kg - 11.02lbs (Battery Align 12 5200mAh) |
| Battery Size | 12S 4000 - 5800mAh |
TB70 Top Combo (Blue / Red)
- Brand ALIGN
- Product Code: 01-RH70E53XW
- Availability: In Stock
- $1,838.99
-
$1,599.99
