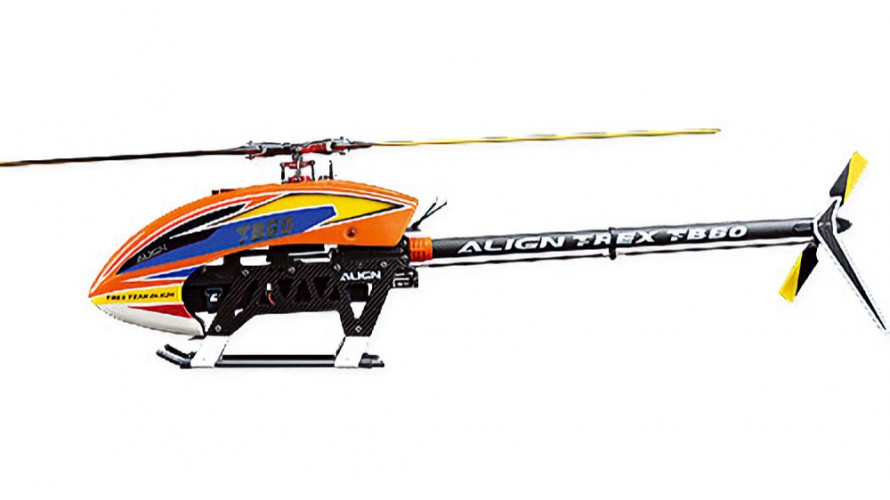

ALIGN TB60 Combo 6S
All-New ALIGN T-REX TB60 Combo 6S RH60E26XW is specially designed for basic flight and those extreme 3D flight addicts. Where do you rate your flight skills or strive to be? Many people confuse Basic, Scale, and 3D flight. When in reality the difference is flight skills based on orientation, practice, and speed of sick movement.

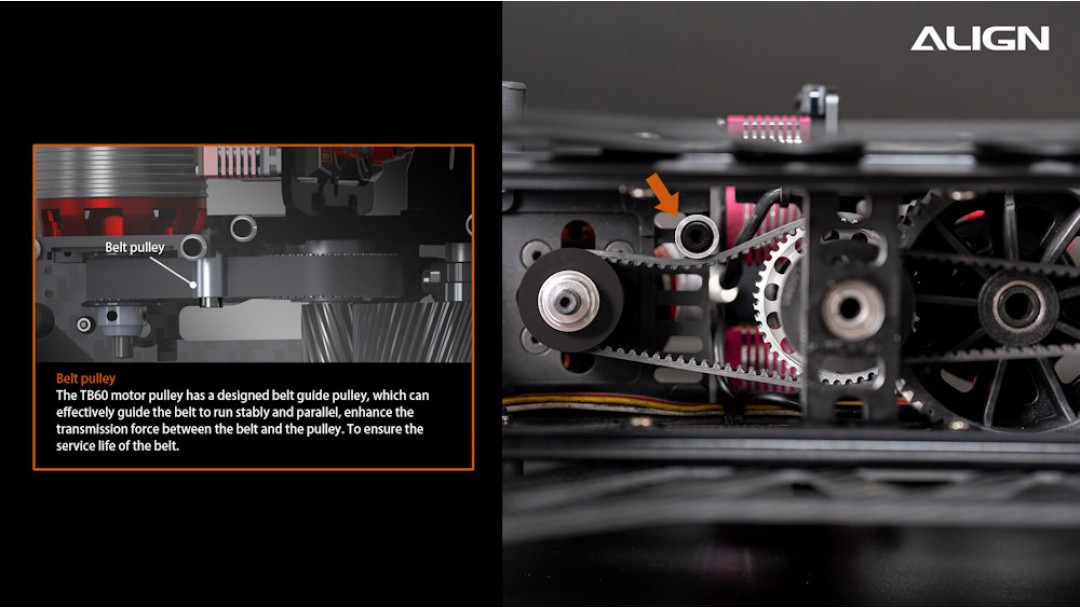

Efficient Belt-Drive Design
Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology
Lighter, Quieter, and Stronger compared to Prior ALIGN TREX 600 Models
New Streamline Designed TB60 Canopy
Upgraded Canopy Mounting System
| Standard Equipment | |
| Kit | TB60 Combo (6S) |
| Model | RH60E26XW |
| Main Blades | ALIGN 600mm Carbon Fiber |
| Tail Blades | ALIGN 95mm Carbon Fiber |
| Electronics Included | |
| ESC | ALIGN RCE-BL150A Brushless ESC |
| ESC Programing | ALIGN ASBOX Multifunction Programmer HES00001 (Sold Separately) |
| Motor | ALIGN 750MX Brushless Motor (930KV/4236) |

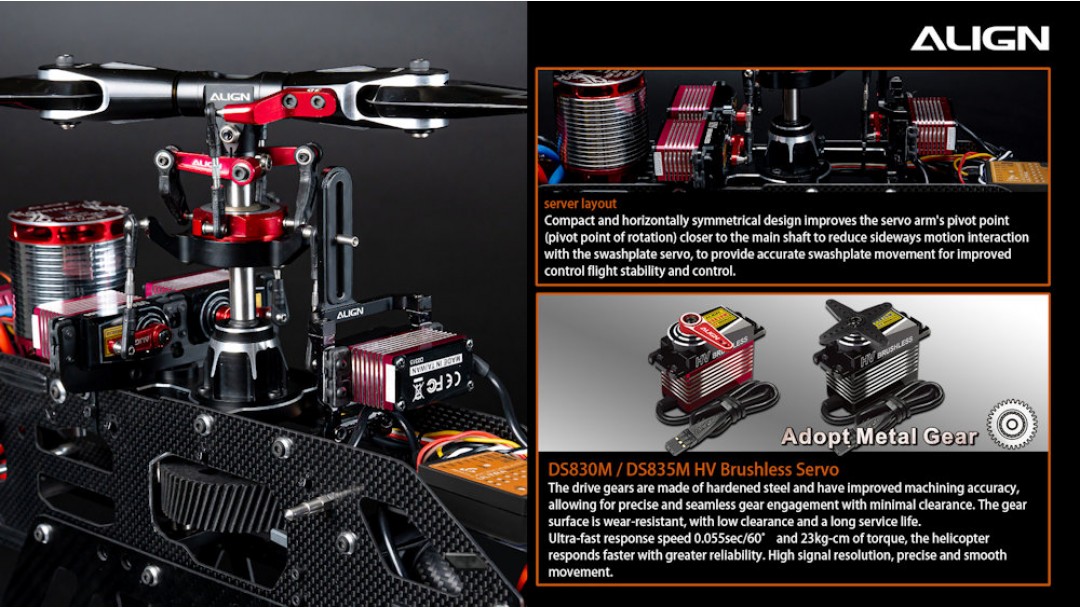

| Cyclic Servo | ALIGN DS830M HV Servo x 3 Freq: 200hz |
| Tail Servo | ALIGN DS835M HV Servo Pulse: 1520µs / Freq: 333hz |
| Servo Gears | Metal |
| Servo Case | All Metal |
| Flybarless System | Beastx Microbeast |
| Flybarless Programming | Lights & Dials, or Studiox APP using Optional USB or Bluetooth Device |
| Stabilization Level Mode | Optional Upgrade |
| Rescue Mode | Optional Upgrade |
| Receiver Supported | DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver |
| Specification | |
| Assembly Required | Yes |
| Length | 1218mm - 47.95In |
| Height | 353mm - 13.90In |
| Width | 183mm - 7.20In |
| Main Blade Length | 600mm - 23.62In |
| Main Rotor Diameter | 1339mm - 52.72In |
| Tail Blade Length | 95mm - 3.74In |
| Tail Rotor Diameter | 253mm - 9.96In |
| Motor Input Voltage | 12S |
| Motor Belt Pulley | 23T |
| Main Drive Gear | 62T |
| Autorotation Driver Gear | 28T |
| Main Drive Pulley | 44T |
| Tail Drive Gear | 23T |
| Tail Drive System | Belt |
| Drive Gear Ratio | 7:89 : 1 : 5.04 |
| Max RPM (approx.) | 2400 |
| Weight (Without Battery) | 2.9kg - 6.39Lbs |
| Battery Size | 6S Li-Po 2600 ~ 4600mAh Recommend 3300mAh |
