All-New ALIGN T-REX TB40 Combo 6S RH40E01X is specially designed for basic flight and those extreme 3D flight addicts. Where do you rate your flight skills or strive to be? Many people confuse Basic, Scale, and 3D flight. When in reality the difference is flight skills based on orientation, practice, and speed of sick movement.
Efficient Belt-Drive Design
Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology

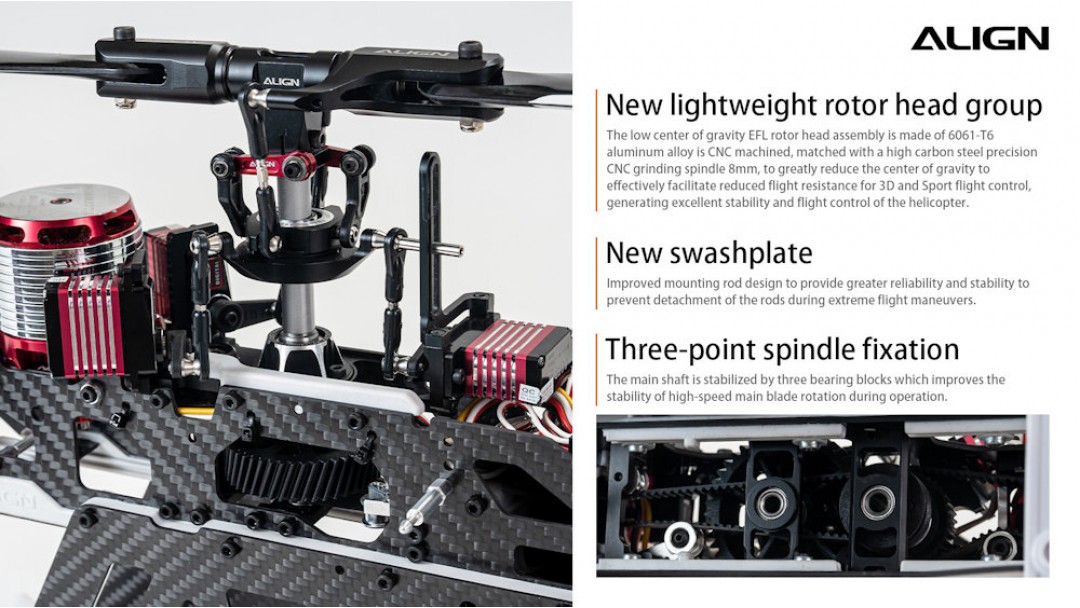

New Streamline Designed TB40 Canopy "Light But Tough"
TB40 Manual Download
|
Standard TB40 Top Combo Equipment TB40 Kit x 1 60A Brushless ESC x 1 400MX Brushless Motor (1100KV/3220) x 1 DS450M Digital Servo x 3 DS535M Digital Servo x 1 380 Carbon Fiber Blades x 1 set 70 Carbon Fiber Tail Blades x 1 MICROBEAST² Flybarless System x 1 |
 |
| Standard Equipment | |
| Kit | TB40 Top Combo |
| Model | RH40E01XW (RH40E01XT) |
| Main Blades | ALIGN 380mm |
| Tail Blades | ALIGN 380mm |
| Electronics Included | |
| ESC | Platinum 60A |
| ESC Programing | Multifunction Programmer HES00001 (Sold Separately) |
| Motor | ALIGN 400MX Brusheless Motor (1100KV/3225) |

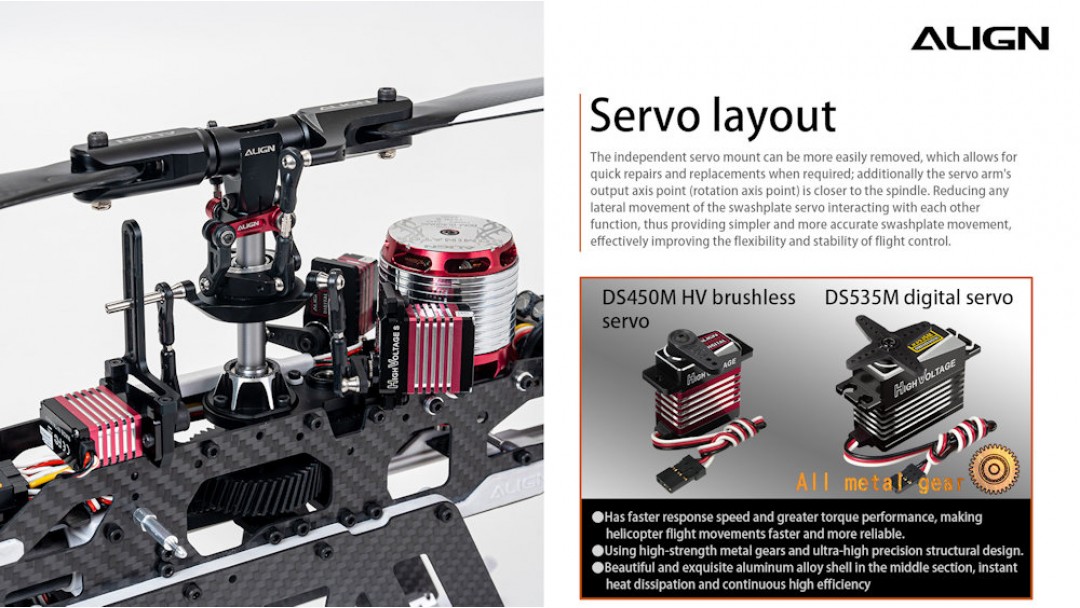

| Cyclic Servo | ALIGN DS450 Digital Servo X 3 |
| Tail Servo | ALIGN DS535M Digital Servo |
| Servo Gears | Metal |
| Servo Case | ALL Metal |
| Flybarless System | Microbeast by Beastx |
| Flybarless Programming | Lights & Dials, or Studiox APP using Optional USB or Bluetooth Device |
| Stabilization Level Mode | Optional Update |
| Rescue Mode | Optional Update |
| Receiver Supported | DSM2/DSMX/DMSS Satellite, Futaba S.Bus, SRXL, JR XBUS, SUMD, M-Link, BEASTX SRXL, JETI UDI, SPPM, Standard Receiver |
| Specification | |
| Assembly Required | Yes |
| Length | 747mm |
| Height | 223mm |
| Width | 103mm |
| Main Blade Length | 380mm |
| Main Rotor Diameter | 851mm |
| Tail Blade Length | 70mm |
| Tail Rotor Diameter | 188mm |
| Motor Input Voltage | 6S |
| Motor Belt Pulley | 22T |
| Tail Drive System | Belt |
| Drive Gear Ratio | 6.44:1:4.04 |
| Max RPM (approx.) | 3400RPM |
| Weight (Without Battery) | 953g |
| Battery Size | 22.2V 6S 1850~2200mAh Li-Po Battery |
|
|
|
| Price | $588.99 | $334.99 |
| Rating | ||
| General | ||
| Kit | TB40 Top Combo | TB40 kit |
| Model | RH40E01XW (RH40E01XT) | RH40E06XW (RH40E06XT) |
| Specification | ||
| Main Blades | ALIGN 380mm | ALIGN 380mm |
| Tail Blades | ALIGN 380mm | ALIGN 380mm |
| ESC | Platinum 60A | |
| ESC Programing | Multifunction Programmer HES00001 (Sold Separately) | |
| Motor | ALIGN 400MX Brusheless Motor (1100KV/3225) | ALIGN 400MX Brusheless Motor (1100KV/3225) |
| Cyclic Servo | ALIGN DS450 Digital Servo X 3 | |
| Tail Servo | ALIGN DS535M Digital Servo | |
| Servo Gears | Metal | |
| Servo Case | ALL Metal | |
| Flybarless System | Microbeast by Beastx | |
| Assembly Required | ||
| Length | 747mm | 747mm |
| Height | 223mm | 223mm |
| Width | 103mm | 103mm |
| Main Blade Length | 380mm | 380mm |
| Tail Blade Length | 70mm | 70mm |
| Motor Input Voltage | 6S | 6S |
