Product Information

For T-REX 300X Series

200 - 300 Class Size RC Helicopters

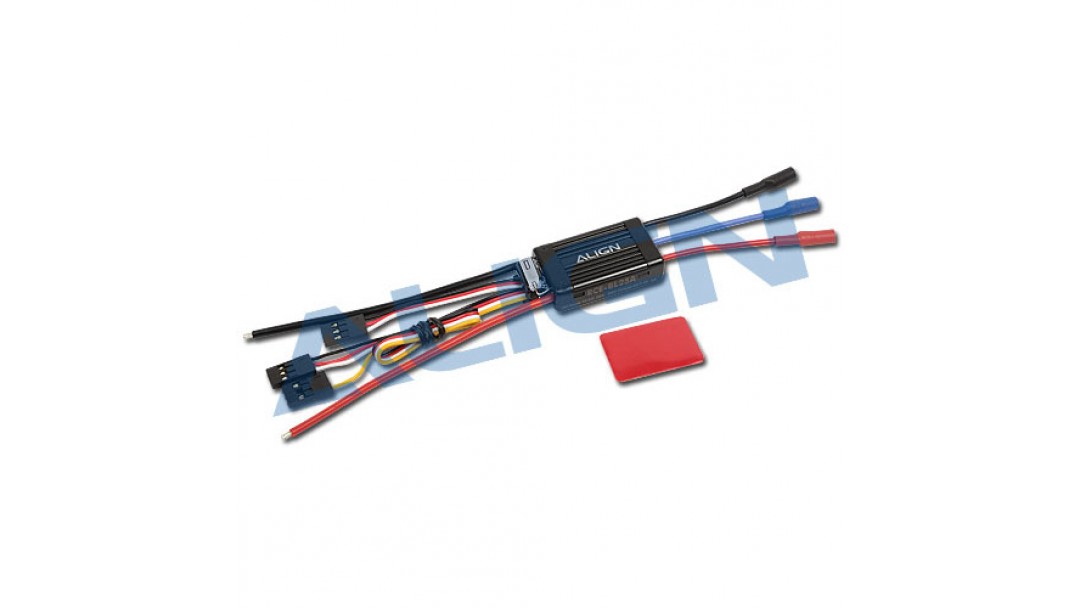

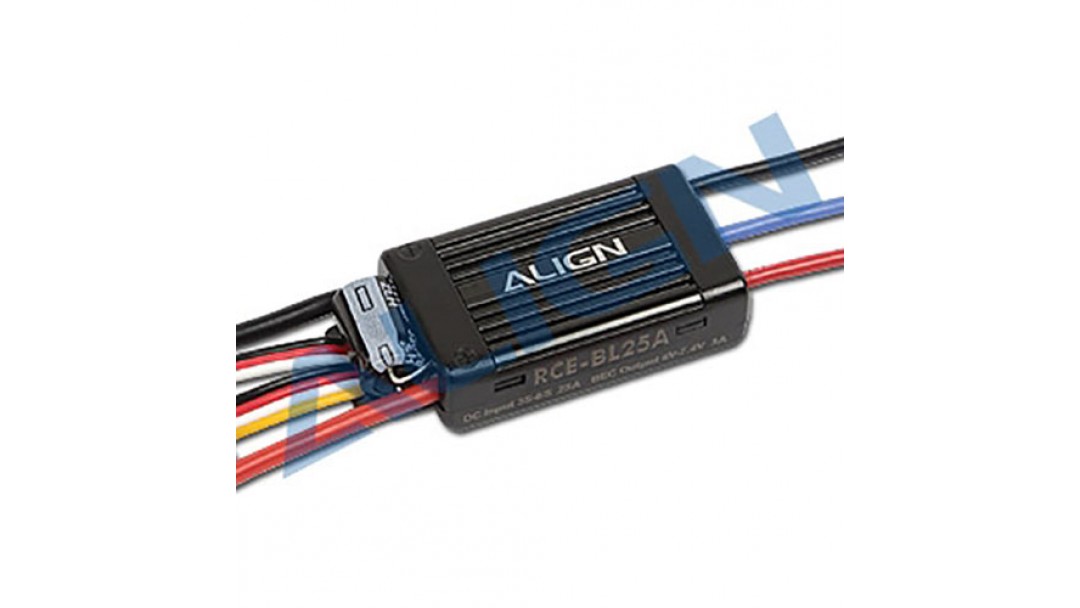

REC-BL25A Adjustable BEC Voltage 6V~7.4V - Factory Default 5.5V

BEC Output Utilizing Switching Power System Suitable for 11.1~22.2V (3S~6S)

Three Programmable Throttle Speed Settings to Support Quick Throttle Response

Governor Mode

Small Compact PCB Design for Ease of Installation

Large Heatsink for Great Thermal Performance

High Compatibility Works with 98% of Brushless Motors

Power Inlet Adapts Japanese Made "Low ESR" Capacitor to Provide a Stable Power Source.

Throttle >200 Step Resolution to Improve Throttle Response and Control

Transmitter Used to Configure ESC Settings Utilizing Super Stylized CPU

Note: If the aircraft should land or crash in an unexpected lost location, the pilot can enable the Aircraft Locator Option. The Aircraft Locator Option is engaged by turning off the transmitter. When the ESC does not receive a signal from the transmitter for 30 seconds, it will start to send an alarm to the motor. The sound of the alarm will aid the pilot to locate the aircraft. This option will not work with a PCM receiver that has SAVE function enabled, or with low noise resistant PM receivers.

Specifications

Continuous Current: 25Amps

Surge Current: 40Amps for 15seconds

Supporting Motor Types: 2 poles to 10+poles In/Out Runner Brushless Motors

Supporting Maximum RPM: 2poles=>190,000rpm 6poles=>63,000rpm

Supporting Input Voltage: 11.1V~22.2V

Supporting Battery Types: Li-ion/ Li-poly 3~6 cells

BEC Output: 6~7.4V

Continuous Current: 3A

Surge Current: 7A

Size: 47x22x10mm

Weight: 27g
