The iSDT P20 Dual Channel DC with scOs user interface, charging batteries and selecting amperage only take a matter of seconds with the simple to use dial system incorporated into the P30 charger.
High Power Synchronous Dual Channel, with Smart Charging
- Smart High Speed Processor delivers parameter interfere to each port
- Hassle Free with Maximum charging power up to 250W (P10) / 500W (P20) for single port
- Choose ISDT, Powered by Innovation
Synchronous Parallel Charging
- Built-in High Speed Processor Synchronous Balance two channel charging
- Maximum Parallel Charging power up to 400W / 800W
- P10 / P20 deliver charging current range from 10A ~ 16A / 20~35A
Support USB Interface to Upgrade Firmware
- Connecting the computer through the USB-C interface, upgrade to the latest firmware
- Always maintain the advanced performance and features
Adjustable Digital Power Supply
- The CH1 of the charger can become a DC power supply
- In adjustable digital power supply mode, the Max. power is 120W(P10) / 150W(P20)
- CC: 0.2~5A(P10) / 1.0~5.0A(P20)
- CV: 5~24V(P10) / 2~30V(P20)
Lights Off In The Dark
- scOS 2.0 new dark mode feature, Suitable for low light scenario
- System will adjust the interface in dark tone
- Reduce light damage to user’s eyes
- While remaining the iconic and comfortable charging display style
Package Includes
D1 Charger and Accessories x 1
|
Charger Specifications | |
Power Type Input | DC |
DC Input Voltage | 10-34V |
Charge Power | 500W x2 |
Charge Current | 0.2-20A x 2 |
Supported Battery Types | LiFe, Lilon, LiPo, LiHv 1-6S, Pb 1-12S, NiMH, Cd 1-16S |
Discharge Current | 0.2-1.5A x 2 |
LiPo/LiIon/Life Cell Count | 1-8S |
Firmware Update | USB-C Interface |
Dimension | 105.5x105.5x47.3mm - 4.15x4.15x1.86in |
Weight | 350g - 12.35oz |

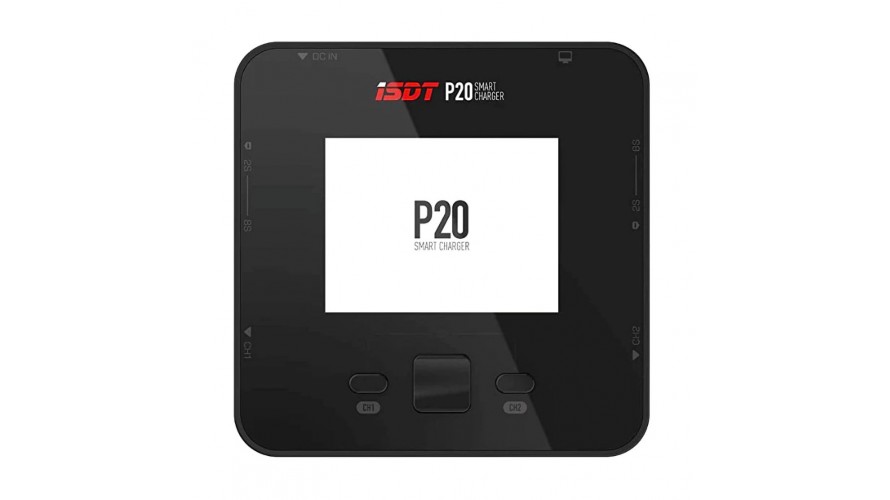

P20 Smart Charger ISD-P20 by iSDT
- Brand iSDT
- Product Code: 71-ISD-P20
- Availability: In Stock
-
$129.99
