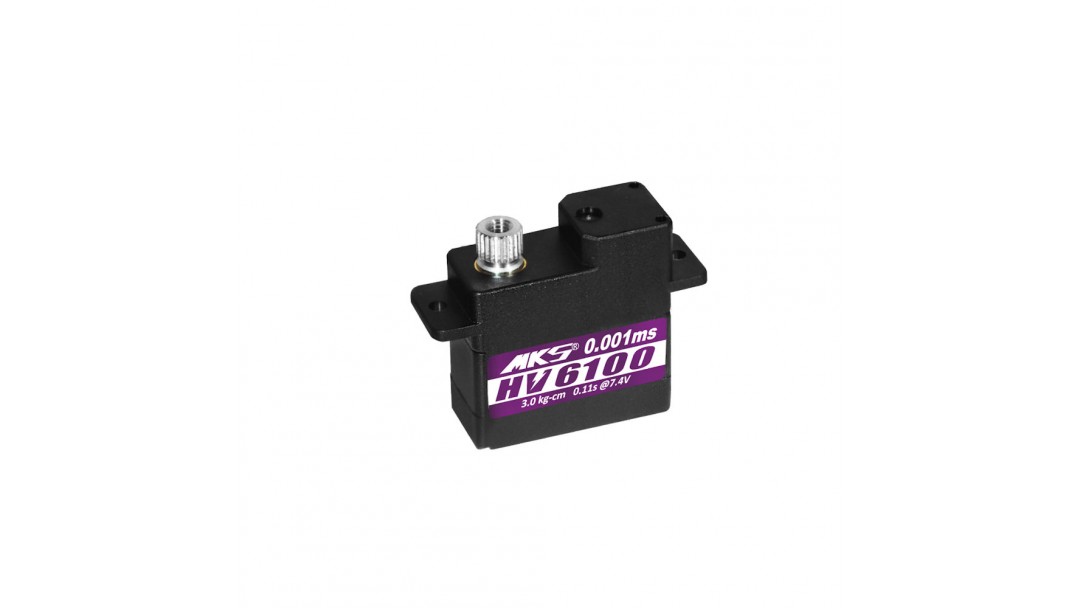

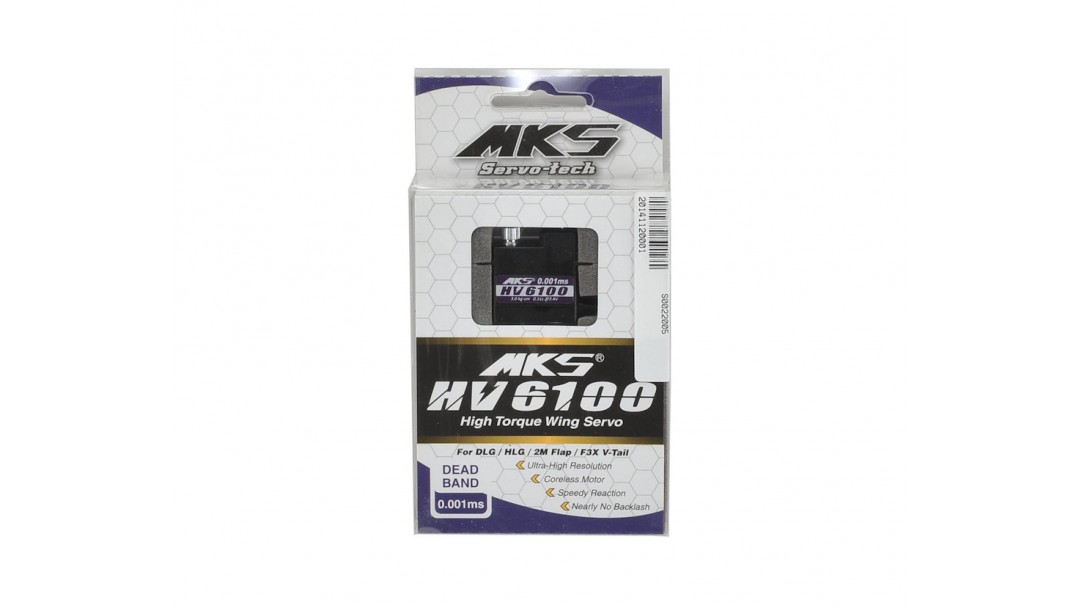

MKS HV6100 High Micro Torque Wing - Tail Servo.
Product Information
For High Torque Wing Servo
High Speed Response
Band: Narrow
Case: Composite Plastic
Gears: Metal Alloy Gear
Motor: Coreless Motor
|
Specifications
- Dead Band: 0.001ms (Default)
- Spline Size: 5mm
- Control System: +Pulse Width Control
- Working Frequency: 1500μs / 333hz
- (RX) Required Pulse: 3.0 ~ 5.0 Volt Peak to Peak Square Wave
- Operating Voltage: 3.8 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed:
- @6V: 0.14 sec/60° degrees at no load
- @7.4V: 0.11 sec/60° degrees at no load
- @8.4V: 0.10 sec/60° degrees at no load
- Stall Torque:
- @6V: 36.11 oz-in (2.6 kg/cm)
- @7.4V: 41.66 oz-in (3.0 kg/cm)
- @8.4V: 47.22 oz-in (3.2 kg/cm)
- 360° Modifiable: NO
- Motor Type: Coreless Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: 2 Jewel Bearing + 1 Bronze Bushing
- Gear Type: Metal + Aluminum Magnesium Alloy

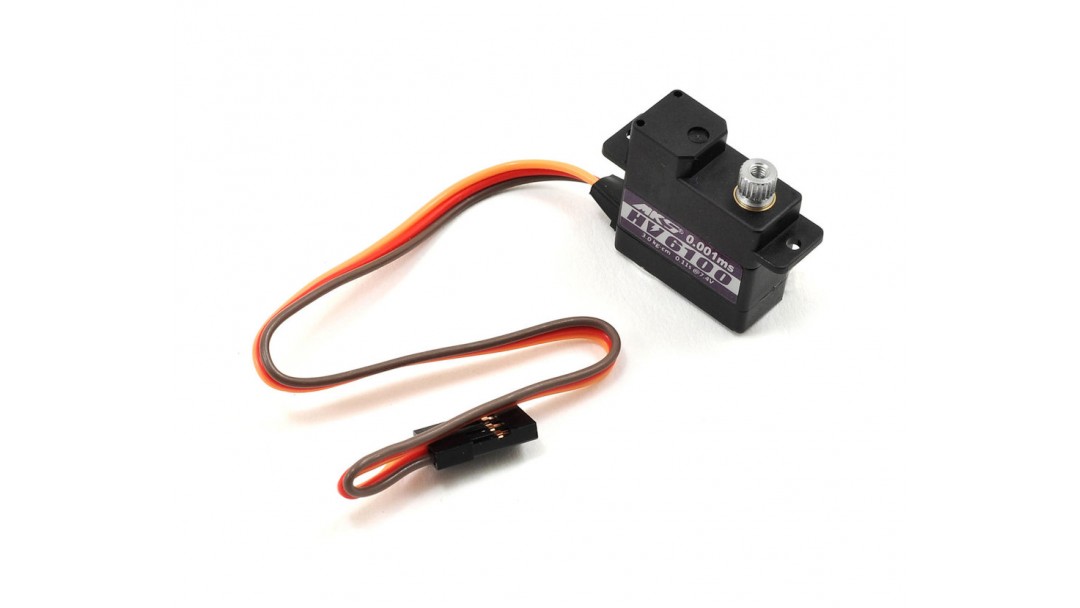

- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 22.5x10x23.5mm - 0.89x0.39x0.93in
- Weight: 10g (0.35 oz)
|
