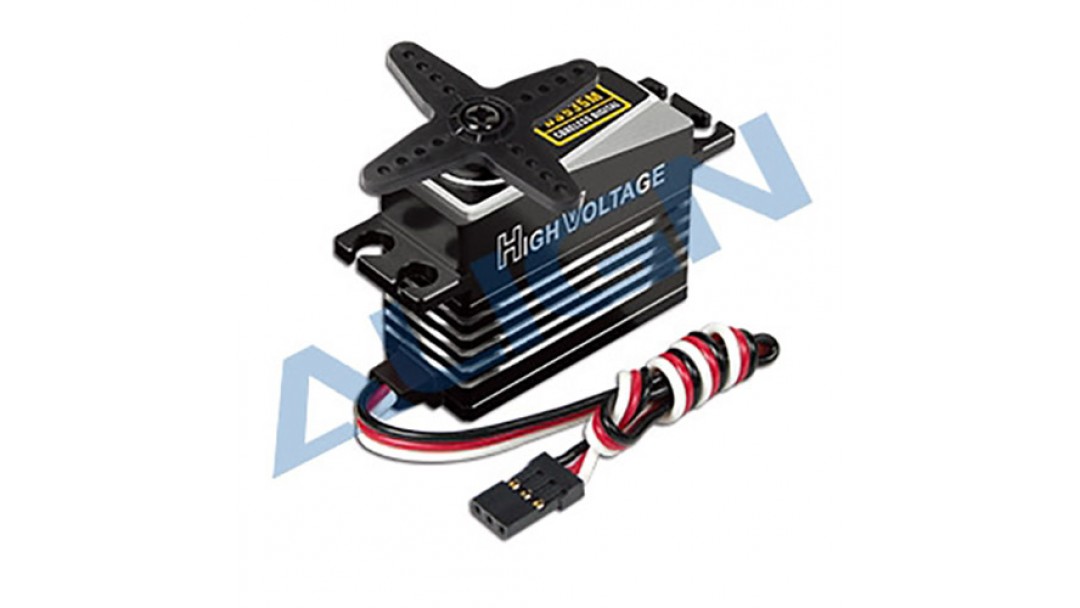

Align T-REX DS535M Digital Servo All Metal Case.

Product Information

For T-REX 500, 550L, 500XT, Any 500 Class Size Series

Designed Specifically for RC Helicopters

Utilizes Brushless Motor for Fast Speed, High Torque, Super Efficient Reaction

CNC Aluminum Case

All Aluminum Alloy Case

Ultra High Signal Resolution

Hardened High Strength Super Alloy Gears

Suitable for Cyclic and Rudder Use

Gear Replacement

DS535 Servo Gear Set - HSP53502

Servo Composite Material Case Replacement

DS530-535 Upper Lower Cover - HSP53004

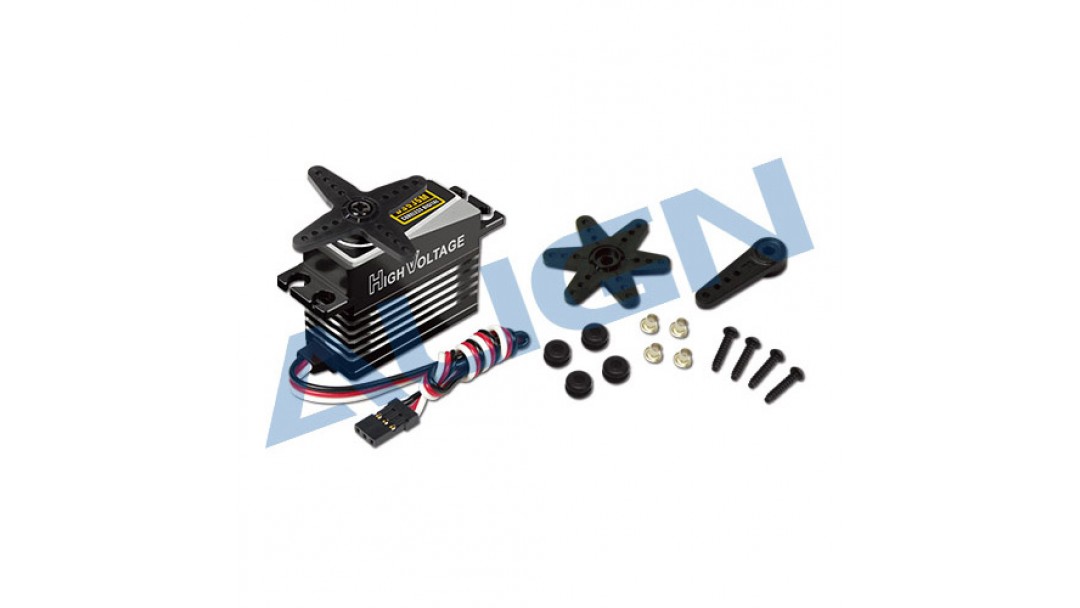

Specifications

DS530M Digital Servo x 1

Servo Arm x 1

DS515/525 Servo Arm Set x 1

Socket Button Head Self Tapping Screw x 4 (T2.6x12mm)

	Align T-REX DS535M Digital Tail HV Servo All Metal Case	Align T-REX DS535 Digital Tail HV Servo Plastic and Metal Case
Price	$80.99	$53.99
Rating
General
Product Name	DS535M Digital Tail HV Servo	DS530 Digital Cyclic HV Servo
SKU	HSD53501	HSD53002
Specification
Cyclic Servo
Tail Servo
RC Use
Case	All Metal	Metal and Composite Material
Gear Set	Metal	Metal
Voltage Range	6.0-8.4V DC	6.0-8.4V DC
Stall Torque	5.0kg.cm (6.0V) - 6.5kg.cm (8.4V)	6.5kg.cm (6.0V) - 9.0kg.cm (8.4V)
Motion Speed	0.05sec/60° (6.0V) - 0.035sec/60° (8.4V)	0.085sec/60° (6.0V) - 0.065sec/60° (8.4V)
Tempeature Range	-20°C ~ +60°C	-20°C ~ +60°C
Swashplate Frequency	200Hz	200Hz
Rudder Frequency	333Hz	333Hz
Pulse Length	1520µs	1520µs
Dimension	35.1 x 15.1 x 29mm	35.1 x 15.1 x 29mm
Weight	36g	29g
