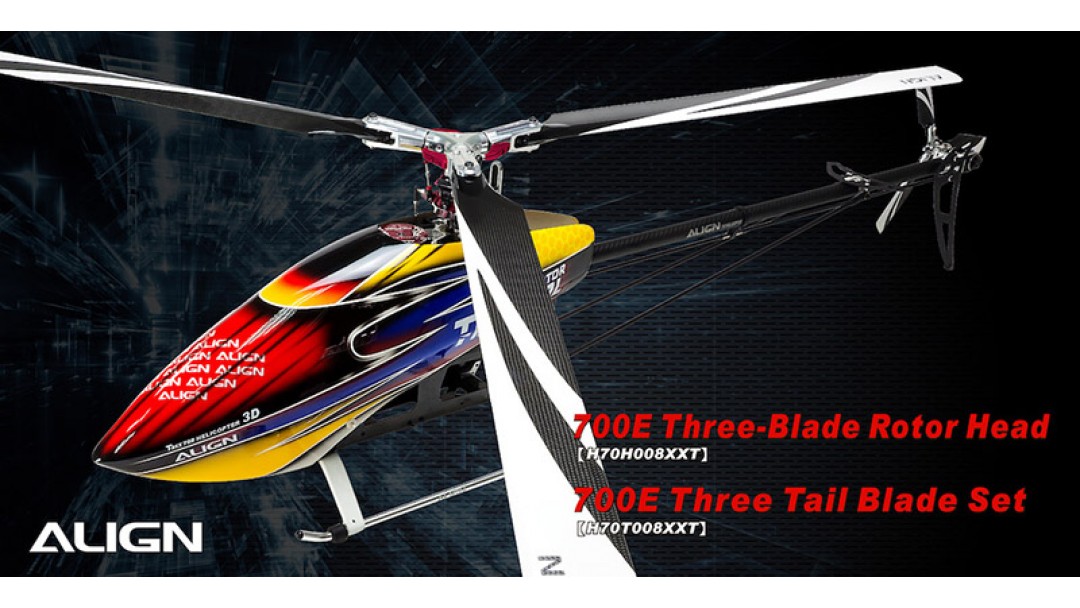

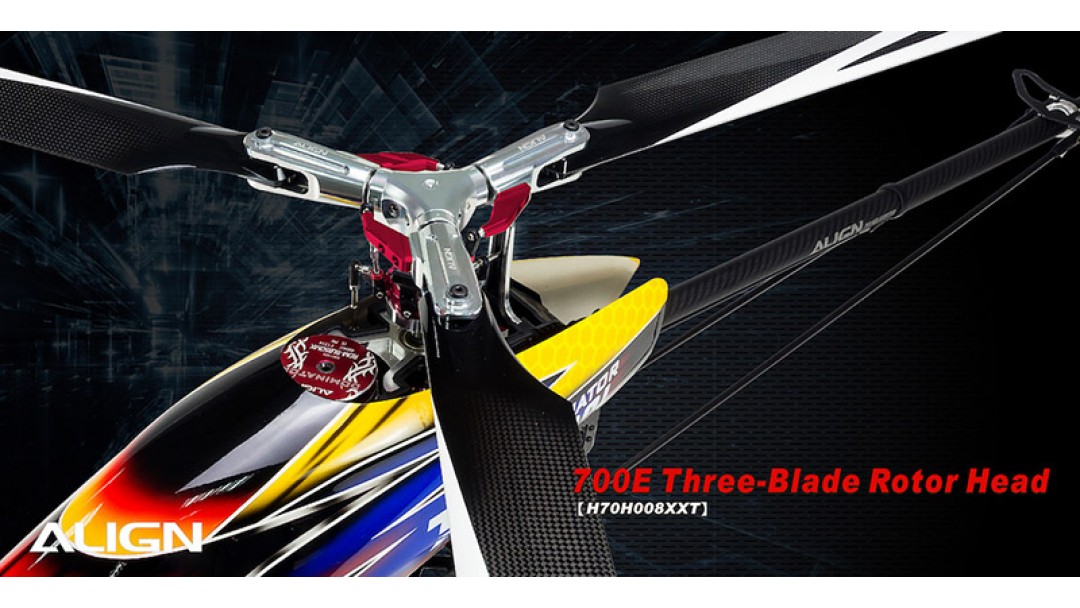

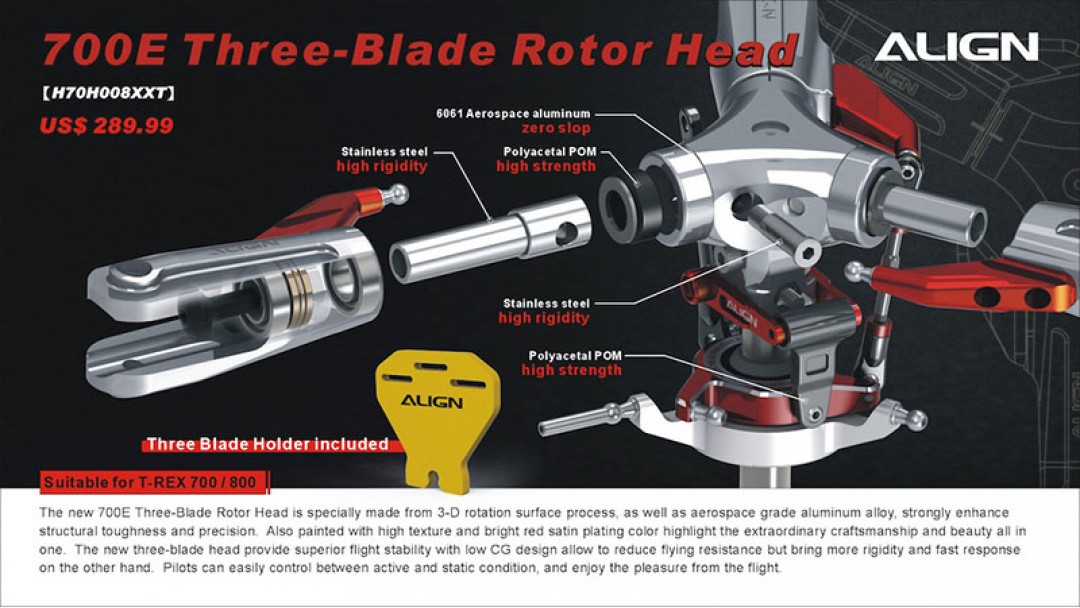

700E Three-Blade Rotor Head.

Product Information

For T-REX 700, 700E, 700L, 700X, 760X, 800 Seriess

Specifications

Three-Blade Rotor Housing x 1

Metal Main Rotor Holder x 3

Three-Blade Shaft Set x 3

Head Damper (Φ10xΦ17x7mm) x 3

Elevator Ball Link (Φ5xΦ6x19mm) x 6

Three-Blade Shaft Screw x 3

Linkage Rod A x 3

Main Blade Grip Arm x 3

Elevator Arm Set x 2

Linkage Rod Set x 1

Linkage Rod Holder x 6


700N Linkage Ball B (M3x4) x 3

Washer (Φ3xΦ4.8x0.3mm) x 2

M4 Washer (Φ4xΦ8x1mm) x 1

Feathering Shaft Washer (Φ10xΦ16x1mm) x 6

Thrust Bearing F10-18M (Φ10.2xΦ18x5.5mm) x 3

6800ZZ Bearing (Φ10xΦ19x5mm) x 6

Socket Button Head Collar Screw (M3x6mm) x 6

Socket Screw (M3x10mm) x 2

Socket Button Head Screw (M2x5mm) x 2

Socket Button Head Collar Screw (M4x24mm) x 2

Socket Button Head Collar Screw (M5x32mm) x 3

Feathering Shaft Socket Button Head Screw (M6x16mm) x 3

M4 Nut x 2

M5 Nut x 3


700DFC Main Shaft x 1

Main Shaft Spacer (1mm) x 1

Main Shaft Spacer (1.2mm) x 1

Main Shaft Spacer (0.8mm) x 1

Main Shaft Spacer (0.5mm) x 1

CCPM metal swashplate x 1

Linkage Ball B (M3x4) x 5

Φ5 Linkage Ball D (M3x3.5) x 1

Φ5 Long Linkage Ball (M3x4) x 1

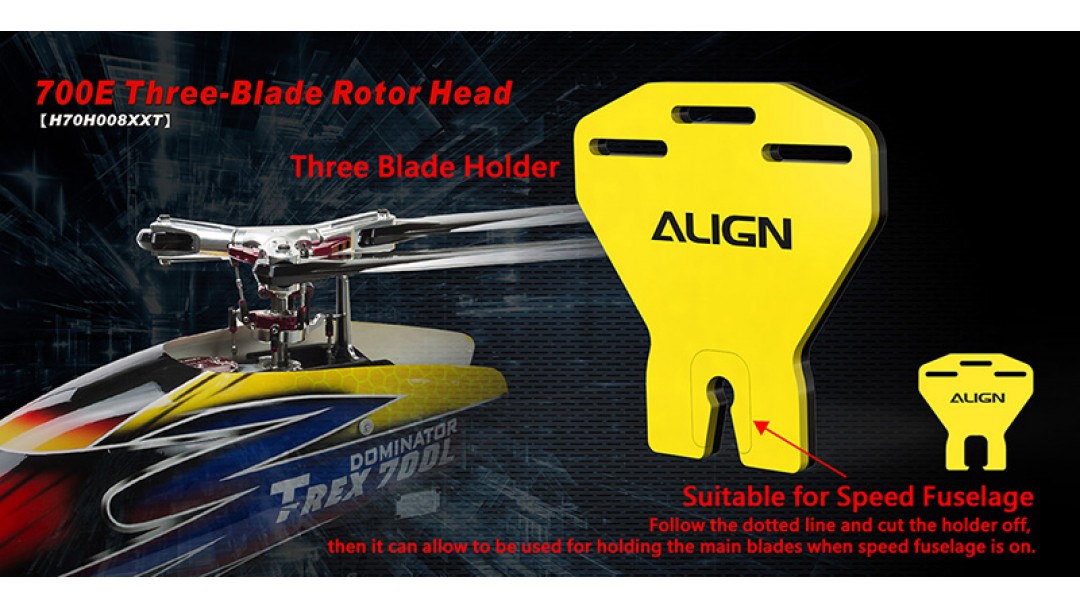

Three Blade Holder x 1

Write a review

Please login or register to review

700E Three-Blade Rotor Head

  • Brand: Align
  • Product Code: 01-H70H008XX
  • Availability: Out Of Stock
  • SKU: H70H008XX
  • $289.99


Related Products

700E Tri-Blade CCPM Metal Swashplate

Tags: T-REX 700X, T-REX 700L, T-REX 700E, T-REX 760X, T-REX 800, T-REX 800 F3C
