Align T-REX 650X Dominator Kit.

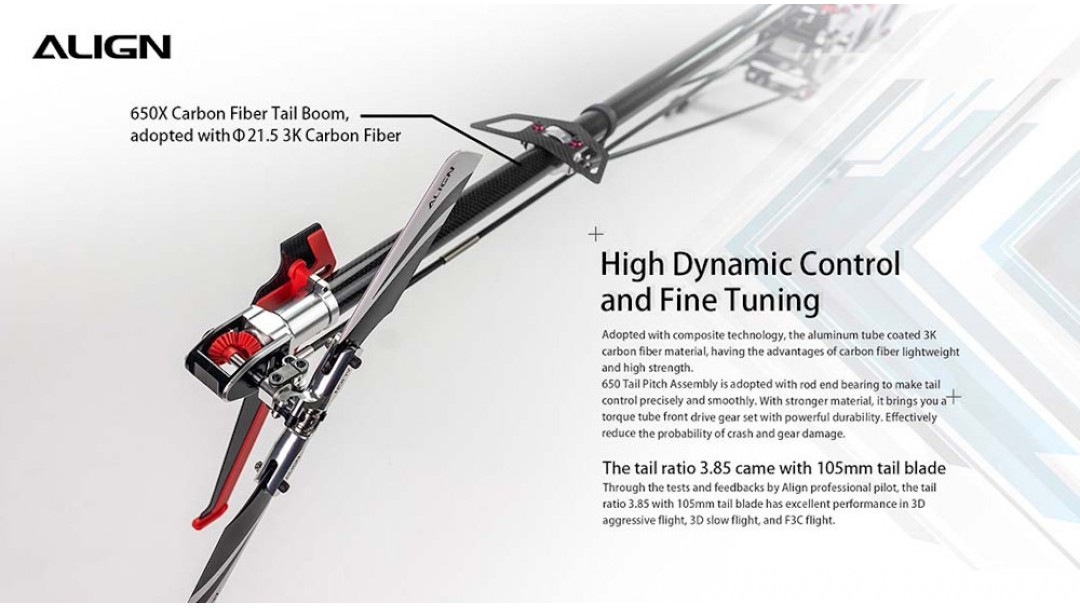

“T-REX 650X Dominator” is special design both for hobby use and 3D competition. T-REX 650X body size is between T-REX 600 and T-REX 700 grade helicopter. It adopts integrated composite material and technology that efficiently enhance structure intensity and make repair convenience. The upper narrow main frame allow to strengthen the structure but also prevent body from deformation, vibration and gear abrasion in extreme flights. The lower wider main frame is designed with quick release latch for battery that makes battery assembly and disassembly more convenient and safe. The flybarless rotor head is low CG design better for 3D flight allow to reduce wind-resistance also improve superior flying feel and stability. So ALIGN T-REX 650X shows excellent flight performance in both 3D aggressive flight, slow 3D and F3C flight!
T-REX 650X is equipped with ALIGN 800MX motor with excellent torque and high efficiency. Besides, the reinforcement plate can not only strengthen machine structure, but also can efficiently lower motor heat up to 20°C on every flight on average. Pilots can choose main blades from 600~650mm based on their preference for outstanding flight performance.
“T-REX 650X Dominator” is the helicopter for all pilots that has both super power and excellent stable 3D flight like 700-grade helicopter and elegant slow 3D dynamic flight performance like 600-grade helicopter.
Standard Equipment T-REX 650X DOMINATOR Kit x 1 800MX Brushless Motor (440KV/4530) x 1 650mm Carbon Fiber Main Blades x 1 set 105mm Carbon Tail Blades x 1 set

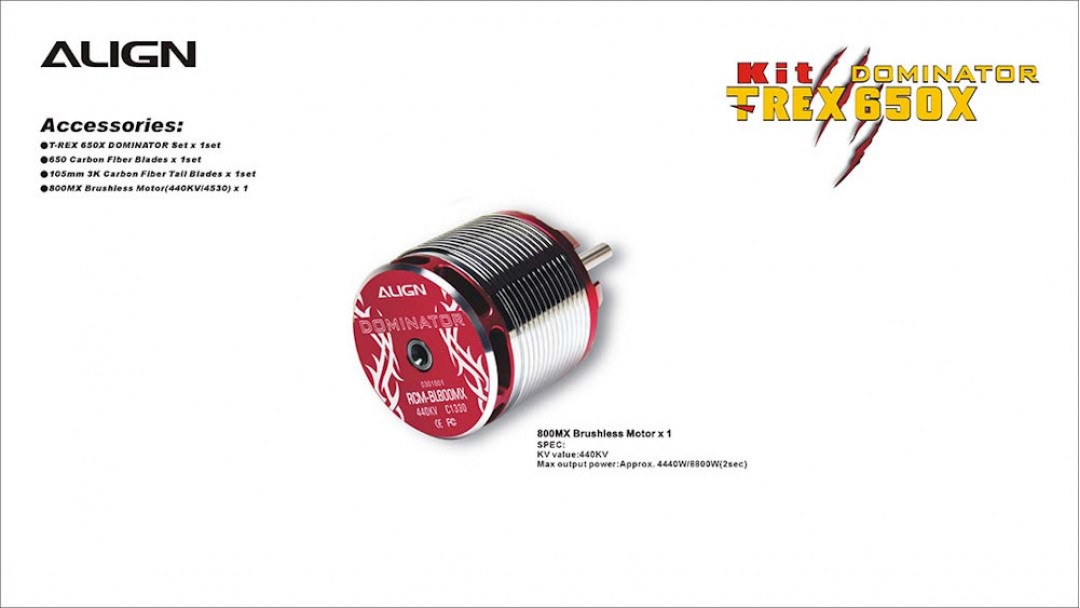

800MX (440KV / 4530) Brushless Motor Input Voltage: 12S Max Continuous Current: 100A/200A(2sec) Max Output Power: 4440W/8800W(2sec) KV Value: 440KV Stator Dimension: 4530 Stator Arms: 12 Magnet Poles: 10 Dimension: Spindle 6x56.7x94.5mm Weight: 508g |
Equipment Required for Assembly Transmitter (6-channel or more, helicopter system) Flybarless System - Recommend Microbeast Plus Receiver S.bus, DMSX/DMS2 , Standard Receiver (6-channel or more) Cyclic Digital Servos x 3 Tail Digital Servo x 1 Brushless ESC - Recommend 130A 6S 22.2V 3000mAh - 5200mAh Battery x 2 Digital Pitch Gauge Misc. Building Equipment |
Standard Equipment | |
Kit | 650X Kit |
Model | RH65E02X |
Main Blades | Align 650mm Carbon Fiber Main Blades |
Tail Blades | Align 105mm Carbon Fiber Tail Blades |
Electronics Included | |
Motor | Align 800MX Brushless Motor (440KV/4530) |
Specification | |
Assembly Required | Yes |
Length | 1220mm - 48.03in |
Height | 356mm - 14.01in |
Width | 191mm - 7.52in |
Main Blade Length | 650mm - 25.59in |
Main Rotor Diameter | 1455mm - 57.28in |
Tail Blade Length | 105mm - 4.13in |
Tail Rotor Diameter | 280mm - 11.02in |
Motor Input Voltage | 12S |
Motor Pinion Gear | 16T |
Main Drive Gear | 112T |
Autorotation Driver Gear | 131T |
Tail Drive Gear | 34T |
Tail Drive System | Torque Tube |
Tail Boom Length | 680mm - 26.77in |
Drive Gear Ratio | 7:1:3.85 |
Weight (Without Battery) | 3320g - 117.1oz |
Align T-REX 650X Dominator Kit RH65E02X
- Brand ALIGN
- Product Code: 01-RH65E02X
- Availability: Out Of Stock
-
$881.99
