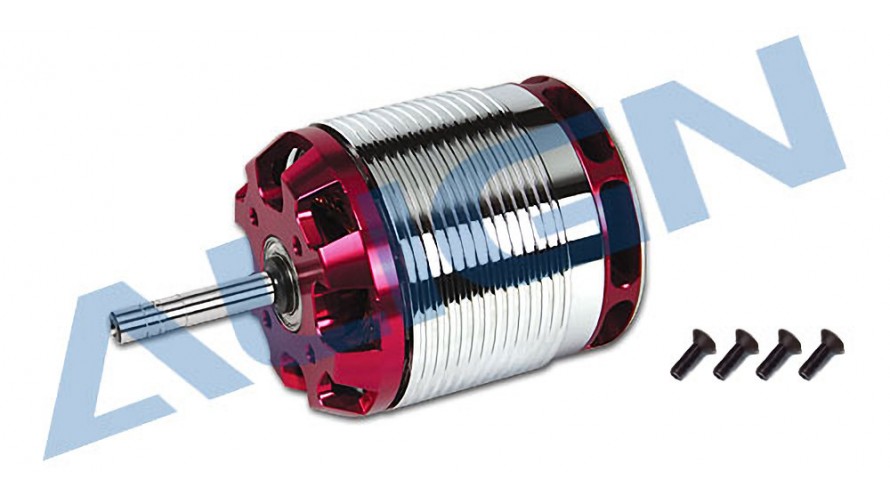

850MX Brushless Motor 540V-4535
- To meet the power and torque requirements of enthusiasts, the high output 850MX motor was born in ALIGN’s R&D lab. With dramatic increase in torque and power output, capable of 5100 watts continuous power output and 11000 watts of burst power!
- Inherit from the previous 800MXs feature, high efficiency, superior power, excellent torque, low current draw and low temperature. It’s capable of maintaining much more consistent torque and head speed through continuous 3D maneuvers, which is particularly special design for 3D flights.
- 850MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
- The 850MX motor armature are dynamically balanced to eliminate typical imbalance found in other outrunner motors.
- Maintenance free, high torque, high efficiency, stable, and low noise.
- High-speed ball bearings, powerful magnetic outrunner rotor.
|
Product Information
For TB70 RC Helicopter Electric Series or Similar 700 Class Size
Bearing Replacement
(6800ZZ) 10x19x5mm - HN7066
(6800ZZ) 10x19x5mm - HN7068
(6800ZZ) 10x19x5mm - H60105
Shaft Replacement
850MX Motor Shaft - HMP85M02
|

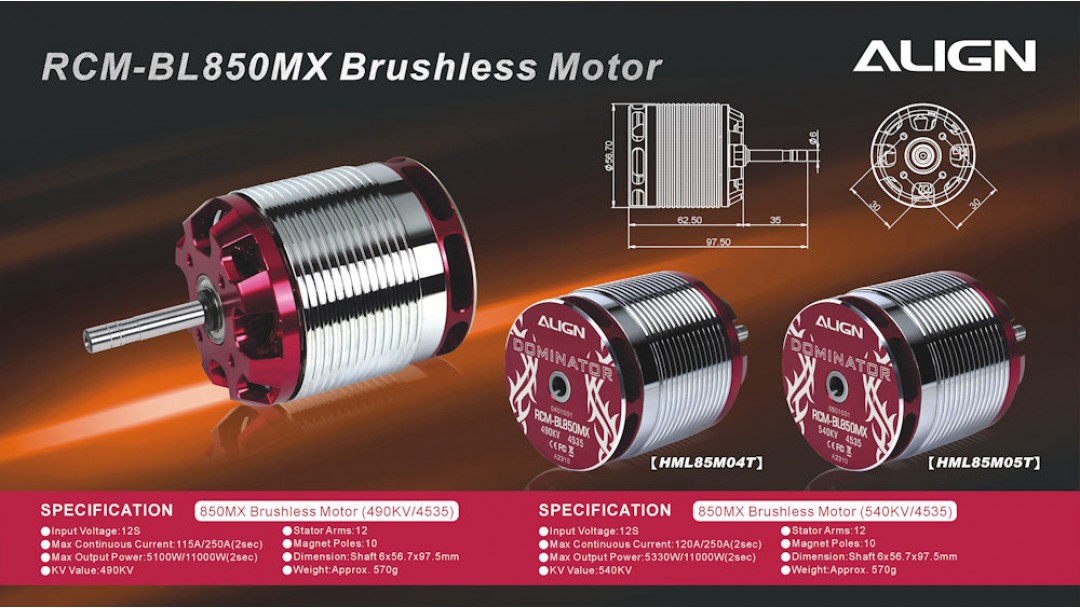

Specifications
850MX Brushless Motor (540KV/4535) x 1
Hex socket screw x 4 (M4x8mm)
5.5mm gilt terminal x 3
Input Voltage:12S
Max Continuous Current: 115A/250A(2sec)
Max Output Power: 5100W/11000W(2sec)
KV Value: 490KV
Stator Dimension: 4535
Stator Arms: 12
Magnet Poles: 10
Dimension: Spindle 6x56.7x97.5mm
Weight: 570g
|
|
