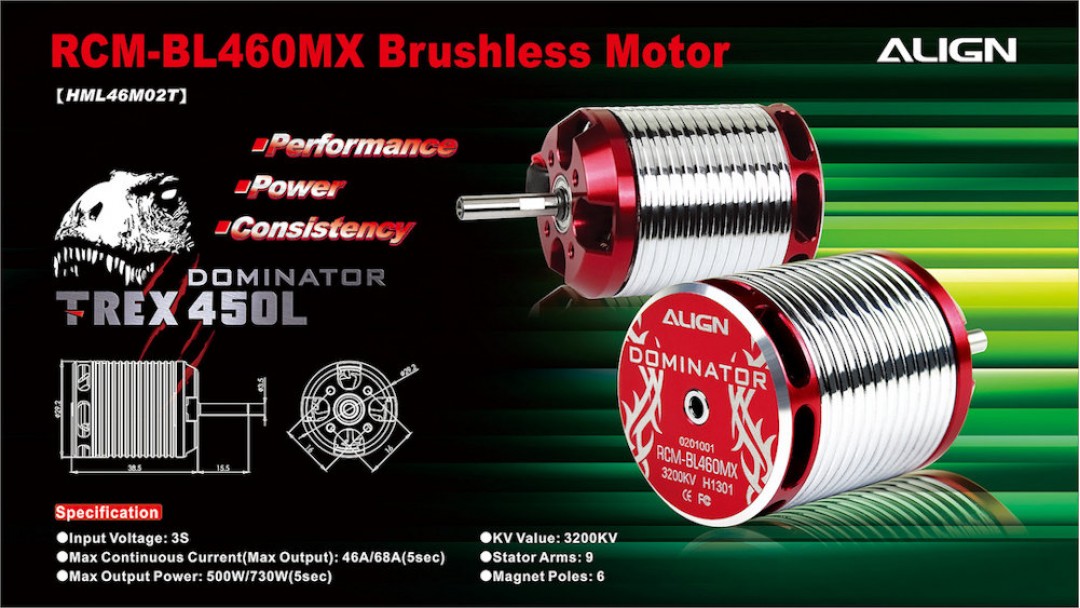

Product Information

For T-REX 450, 450PRO, 450L Series or Similar Size RC Helicopter

Recommended ESC: 45A / 50A

Input voltage: 3S

Max Continuous Current: 46A/68A (5sec)

Max Output Power: Approx. 500w/730W (5sec)

KV Value: 3200KV

Stator Dimension: 2222

Stator Arms: 9

Magnet Poles: 6

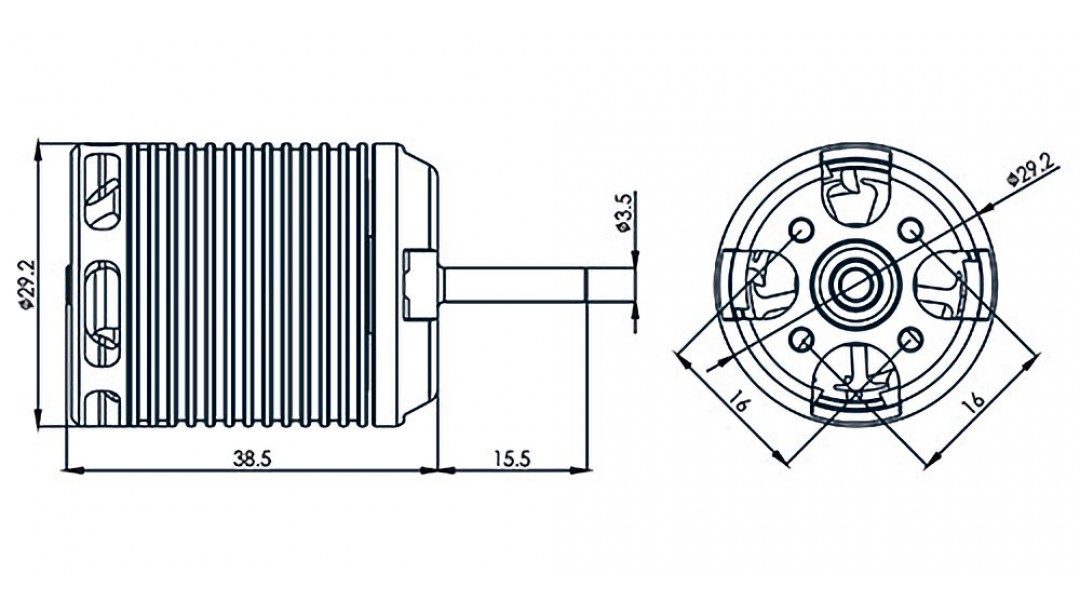

Dimension: Spindle 3.5x29.2x38mm

Weight: Approx. 87g

Shaft Replacement

460MX Moor Shaft - HMP46M01

Specifications

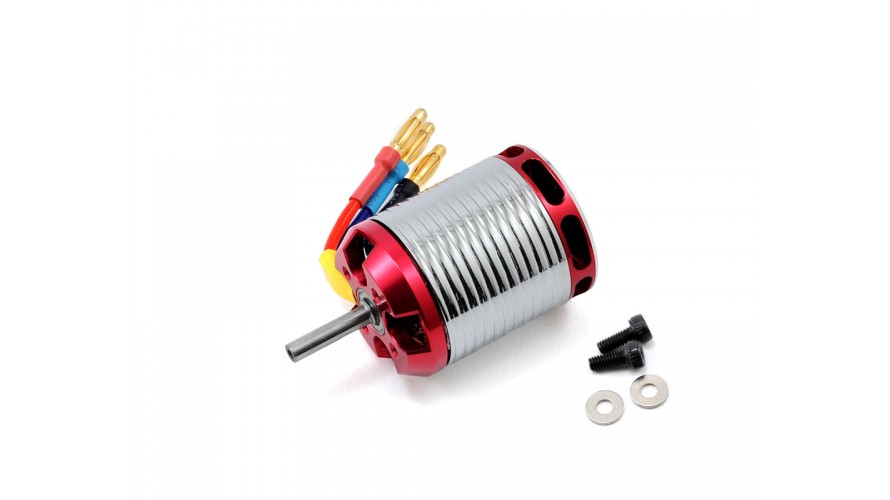

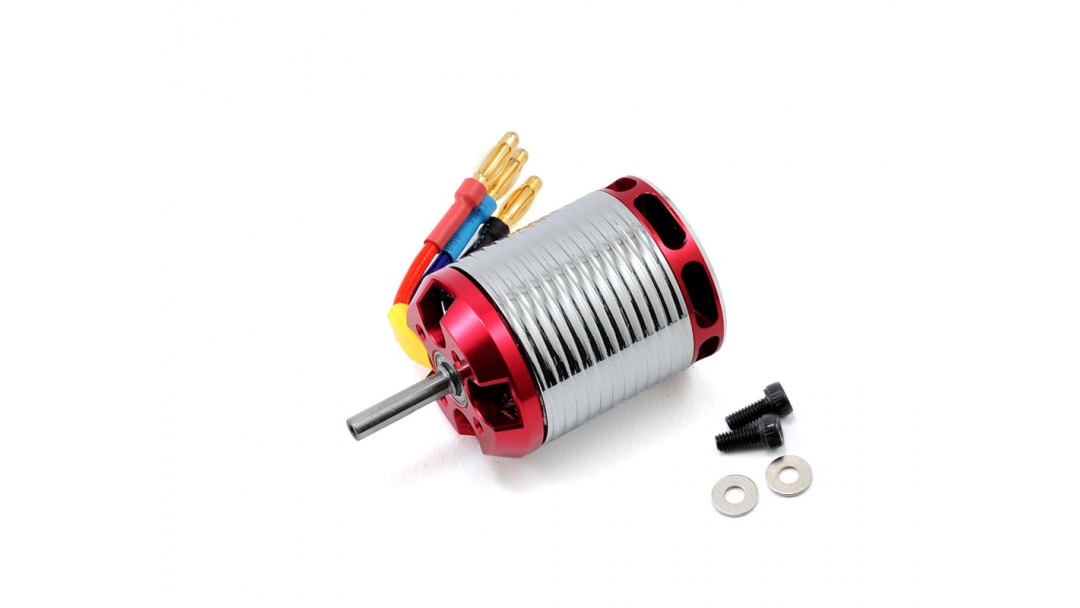

460MX Brushless Motor x 1

Socket Button Head Screw x 2 (M2.5X6mm)

Washer x 2 (2.6X5.8X0.6mm)

ALIGN Standard 3mm Gilt Terminal x 3 set
