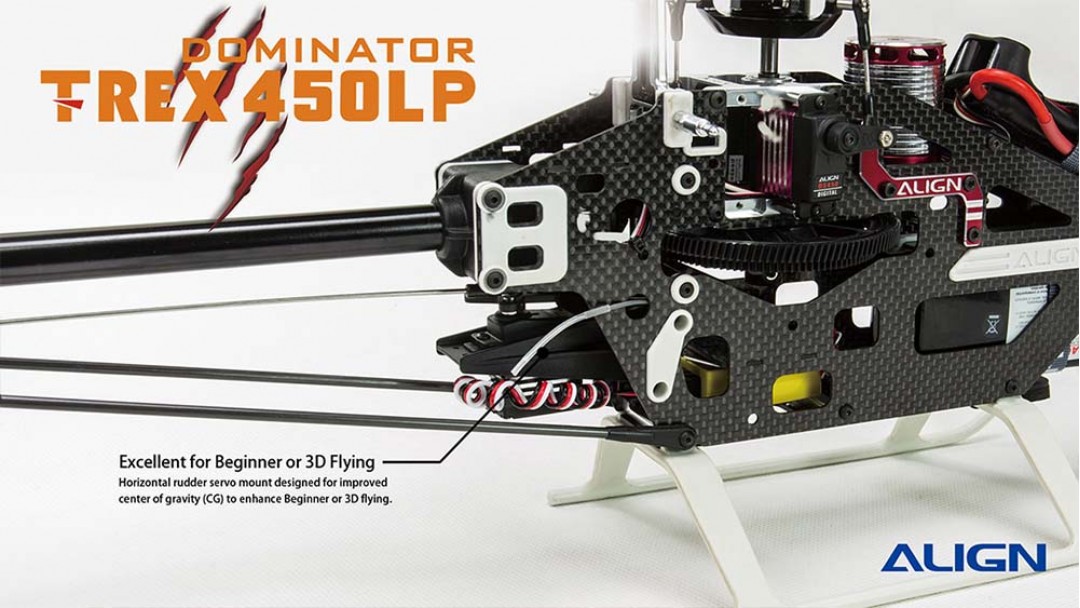

T-REX 450LP Dominator Almost Ready to Fly ARTF includes A10 2.4GHz Transmitter.
Align T-REX 450LP has been the ideal choice for entry level R/C helicopters. To cater to new RC helicopter enthusiasts, Align introduced T-REX 450LP Almost Ready to FlyARTF (Almost Ready to Fly)*, complete with newly released Align A10 transmitter and Mini GRS flybarless system. This combination allows new enthusiasts to spend more time flying, rather than countless hours of guess work and building.
The helicopter utilizes DFC (Direct Flight Control) rotor head, paired with Mini GRS flybarless system optimized for T-REX 450LP flight characteristics. It provides excellent stability suitable for pilots of all levees.
Equipped with digital high voltage servo DS450 and DS455, supports 8.4 high voltage to provide optimal speed and torque performance. Paired with the new RCE-BL45P ESC, supports adjustable 5~8.4V BEC function to highly improve flight performance.
ALIGN A10 is AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz transmitter provided with 10 channels. The stick and holder are designed based on ergonomic bringing much smoother control. Completed function with the mode of helicopter / aircraft / multicopter. Logical and simple control interface, and easy to set up.
With the addition of the brand new Align A10 transmitter and Mini GRS, the T-REX 450LP ARTF pushes past the performance limitation of flybar helicopter, improving both on stability and 3D performance, while maintaining a down to earth price level.
Package Includes 450LP 3S Helicopter RTF x 1 A10 Transmitter x 1 3S1P 11.1V 2250mAh 50C x1 RCC-3SX Charger x 1 MINIGRS Specification Operating voltage range: DC 3.5~8.4V Operating current consumption: <100mA @ 4.8V Rotational detection rate: ±300°/sec Rudder yaw detection rate: ±600°/sec Sensor resolution: 12 BIT Swashplate Support: 120° CCPM Swashplate Mode Support: T-REX250, T-REX450, T-REX470, T-REX500 Receiver Support: ALIGN A10(A.BUS), Futaba S-FHSS, DSM2/DSMX Operating temperature: -20? ~ 65? Operating humidity: 0% ~ 95% Comply with RoHS Size: 37.6mm x 22.4mm x 13mm |

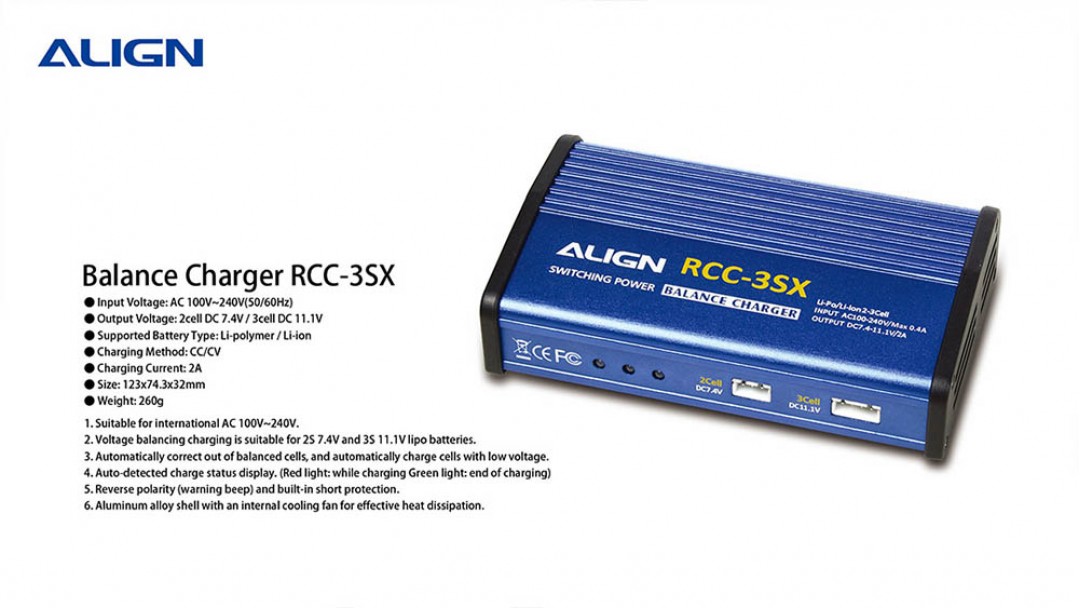

Balance Charger RCC-3SX Specification Input Voltage: AC 100V~240V(50/60Hz) Output Voltage: 2cell DC 7.4V / 3cell DC 11.1V Supported Battery Type: Li-polymer / Li-ion Charging Method: CC/CV Charging Current: 2A Size: 123mm x 74.3mm x 32mm Weight: 260g *User is required to install tail assembly to the body of the helicopter and reconfirm set-up before flight. |
Standard Equipment | |
Kit | T-REX 450LP Dominator Kit |
Model | RH45E32X |
Main Blades | Align 325mm Carbon Fiber Main Blades |
Tail Blades | Align 65mm Tail Blades |
Battery | Align 3S1P 11.1V 2250mAh 50C - XT60 |
Battery Charger | Align RCC-3SX Balance Charger |
Electronics Included | |
ESC | Align RCE-BL45P ESC |
ESC Programing | Transmitter Throttle Stick |
Motor | Align 460MX Brushless Motor (3200KV/2222) |
Cyclic Servo | Align DS450 Digital Servo x 3 |
Tail Servo | Align DS455 Digital Servo |
Servo Gears | Metal |
Servo Case | Metal and Composite Material |
Flybarless System | MiniGRS Flybarless System |
Flybarless Programming | Dials on MiniGRS & Transmitter |
Stabilization Level Mode | No |
Rescue Mode | No |
Receiver Built In | MiniA.BUS Receiver Included, Futaba - FHSS |
Receiver Supported | DSMX (Recommend Kensun Satellite) |
Transmitter Specification | |
Model Memory | 20 Different Models |
Channel | 10-Channel |
Frequency Range | 2.4055 ~ 2.475 GHz |
Available Models | Helicopter - Airplane - Multicopter |
Power | No Higher Than 20dBm |
System Mode | 2.4G System AFHDS 2A |
Input voltage | 4.0 ~ 6.0V DC |
Receiving Distance | Direct Line of Site <1000M |
Low Voltage Warning | Lower than 4.2V |
Size | 275x187x102mm - 10.83x7.36x4.02in |
Weight | 485g - 17.11oz (excludes battery) |
Specification | |
Assembly Required | Minor - Install Tail Boom |
Length | 705mm - 27.56in |
Height | 205mm - 8.07in |
Width | 110mm - 4.33in |
Main Blade Length | 325mm - 12.80in |
Main Rotor Diameter | 734mm - 28.90in |
Tail Blade Length | 65mm - 2.56in |
Tail Rotor Diameter | 171mm - 6.73in |
Motor Input Voltage | 3S |
Motor Pinion Gear | 11T |
Main Drive Gear | 121T |
Autorotation Driver Gear | 106T |
Tail Drive Gear | 26T |
Tail Drive System | Torque Tube |
Drive Gear Ratio | 11:1:4.07 |
Weight (Without Battery) | 730g - 25.75oz |
450LP Almost Ready to Fly with A10 ARTF
- Brand ALIGN
- Product Code: 01-RH45E32XW
- Availability: Out Of Stock
- $647.99
-
$559.99
